Product data sheet

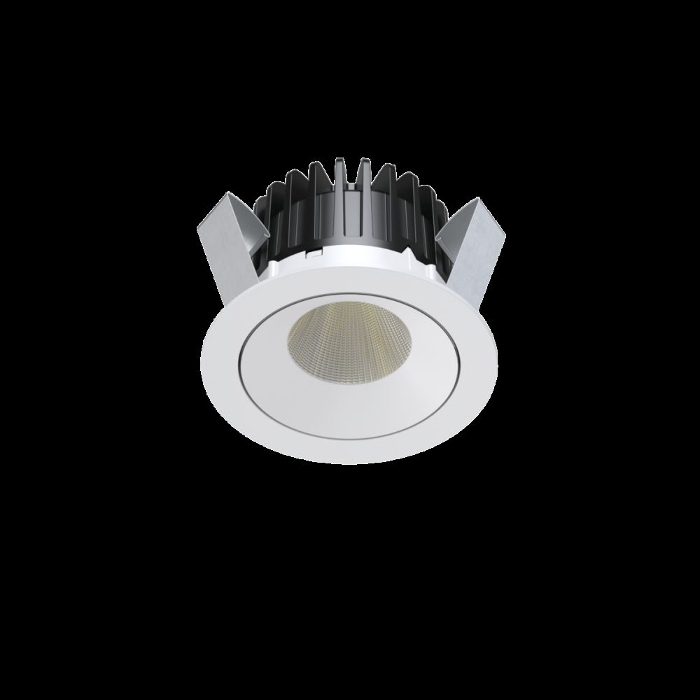

INTO R100 LED DALI 14W 34° 1250lm 3000K IP20 white

030551.3L01.331

LUG

Decorative downlight luminaire, adapted for tool-free assembly, for suspended ceilings, for LED light sources. The luminaire in round version with different angles of light distribution. Mounting: in the ceiling, with mounting brackets (included) Body: aluminum Power: 220-240V 50/60Hz Includes light source: yes Lifetime (L80B10): 60 000 h Warranty: 5 years Application: public utility facilities, delicatessen, supermarkets, shopping centers, offices, car showrooms, pathways, halls, classrooms, corridors, flats

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 14 W 1250 lm 89 lm/W 3000 K 80
INTO R100 LED DALI 14W 34° 1250lm 3000K IP20 white

INTO R100 LED DALI 14W 34° 1250lm 3000K IP20 white

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 68 mm

Diameter: 100 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 14 W

Controller: DALI

Appliance Class: II

Protection

IP: 20

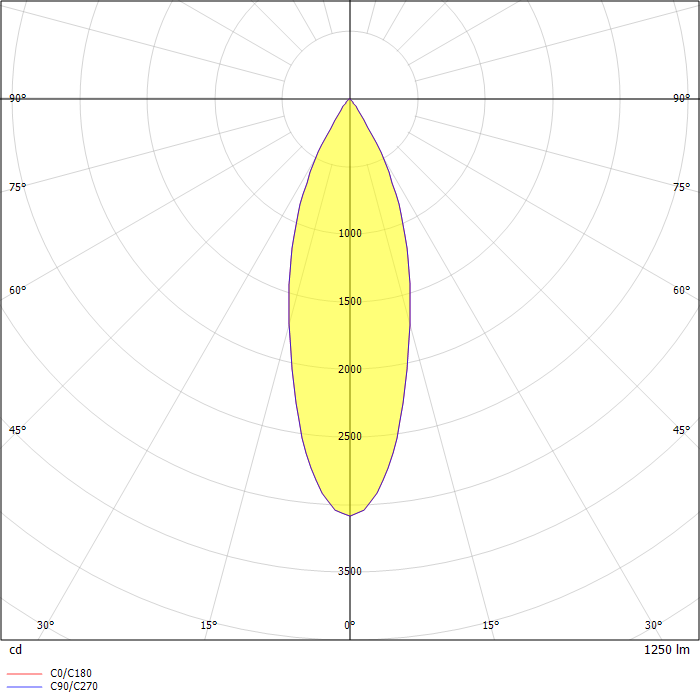

Photometric data

ZIP file
