Product data sheet

Emergency Module Liteline G2 IP44 1200 EM Clear

7218620

Hide-a-lite

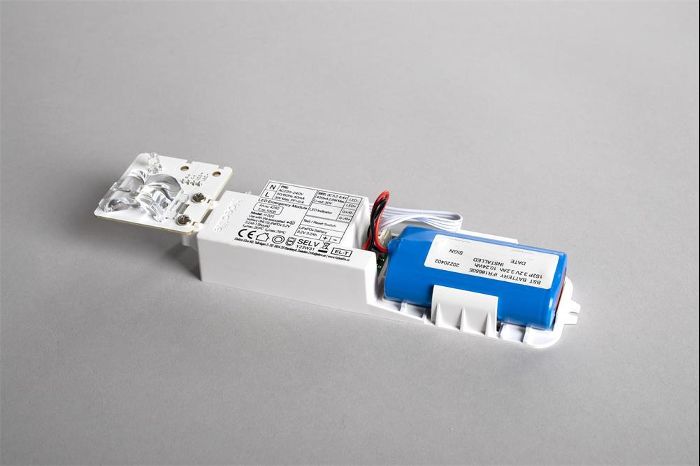

Product image 1: Emergency Module Liteline G2 IP44 1200 EM Clear
Product image 1: Emergency Module Liteline G2 IP44 1200 EM Clear

Product image 1: Emergency Module Liteline G2 IP44 1200 EM Clear



IP
44

Liteline G2 IP44 1200 luminaires can be supplemented with an emergency lighting modules afterwards and will retain their normal capacity and control function. The emergency lighting module is equipped with automatic self-testing and indicates status via green or red LED. Provides light for 1.5 hours with power failure. Emergency lighting module including battery.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 2 W 349 lm 174 lm/W 4000 K 70
Emergency Module Liteline G2 IP44 1200 EM Clear

Emergency Module Liteline G2 IP44 1200 EM Clear

Light output 1 (integrated, emergency)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1175 mm

Width: 150 mm

Height: 50 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 2 W

Information regarding emergency functions

Emergency lighting only

Emergency sign: N/A

Protection

IP: 44

Designation labels: CE

Photometric data

ZIP file

Download file
