Product data sheet

Vivita Decor Ring with shade LL 830 sym CLO CL2 CG

305086-565

Fagerhult

Installation Luminaire for assembly on a post, with post top Ø 60 mm. Connection Supplied with 5 m 2x1,5 mm² connection cable (H05RN-F). Design Body, heat sink and cover in cast aluminium. Diffuser of impact resistant UV-stabilised polycarbonate. Ballast integrated in the luminaire. Louvre Decor rings in acrylic (PMMA). Reflector Symmetrical reflector in acrylic (PMMA) or asymmetrical reflector in sheet metal. Light Distribution Symmetrical or asymmetrical. Dimming CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its service life. Night-time dimming 2, dims down for eight hours. Other options for light control available on request. Standard Colour Alu-grey (RAL 9006). LED-information Driver with integrated surge protection (DM: 6 kV.)

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 22 W 1964 lm 89 lm/W 3000 K 80
Vivita Decor Ring with shade LL 830 sym CLO CL2 CG

Vivita Decor Ring with shade LL 830 sym CLO CL2 CG

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 716 mm

Width: 720 mm

Height: 543 mm

Adjustability

Fixed

Design

Colour of housing: Silver gray

Electric

System power: 22 W

Protection

IP: 66

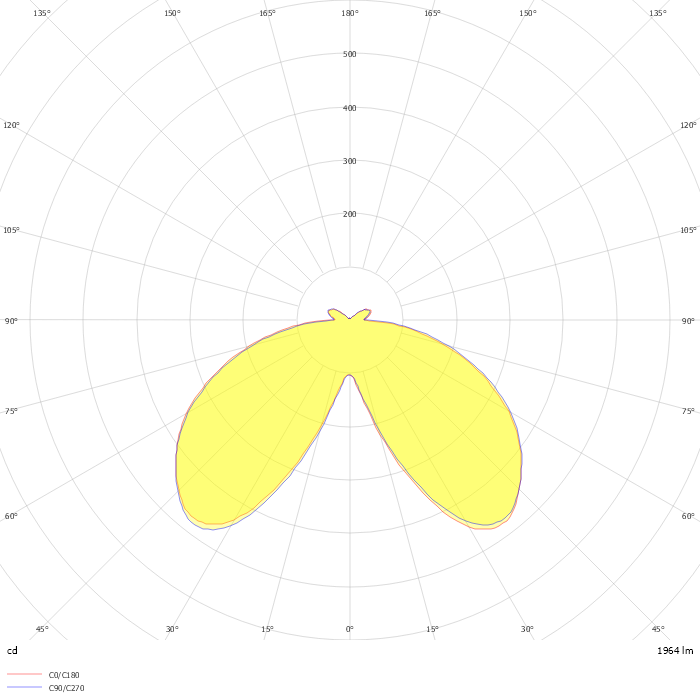

Photometric data

ZIP file
