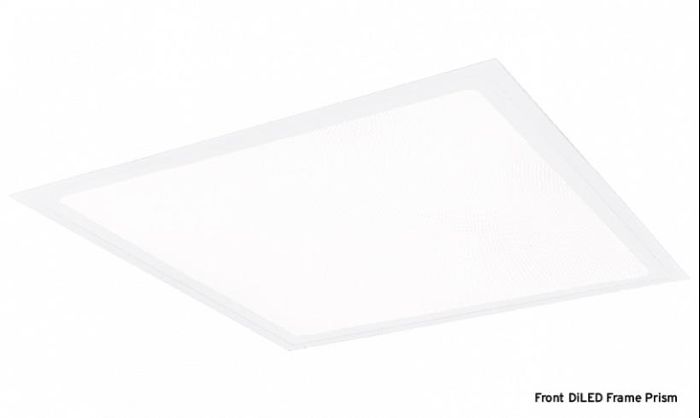

Multi Concept is a flexible, recessed luminaire that is designed to meet future requirements. The luminaire can be combined in a variety of ways using the three components (luminaire housing, insertable LED unit and front cover). Thus, Multi Concept is adaptable to a room’s function in terms of design and lighting technology and the lighting can be optimised when the function of a room is changed. Light distribution Direct Light source LED 36W 2700-6500K Ra>80 SDCM 3 L70/B50 >50,000 hrs Control/Dimming FreeBlue Protection Class I IP20 Materials and finish Housing: Sheet steel Colour: White (Pure white, 25% gloss) Optics: PMMA (Acrylate) Mounting/Connection Recessed, Indoor Max. luminaires per circuit breaker: B10: 11, B16: 17, C10: 18, C16: 29
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 36 W | 3160 lm | 88 lm/W | 2700 K | 80 |
Mounting mode
Ceiling recessed
Shape and measurements
Length: 595 mm
Width: 595 mm
Height: 104 mm
Adjustability
Fixed
Electric
System power: 36 W
Colour adjustable
Appliance Class: I
Protection
IP: 20

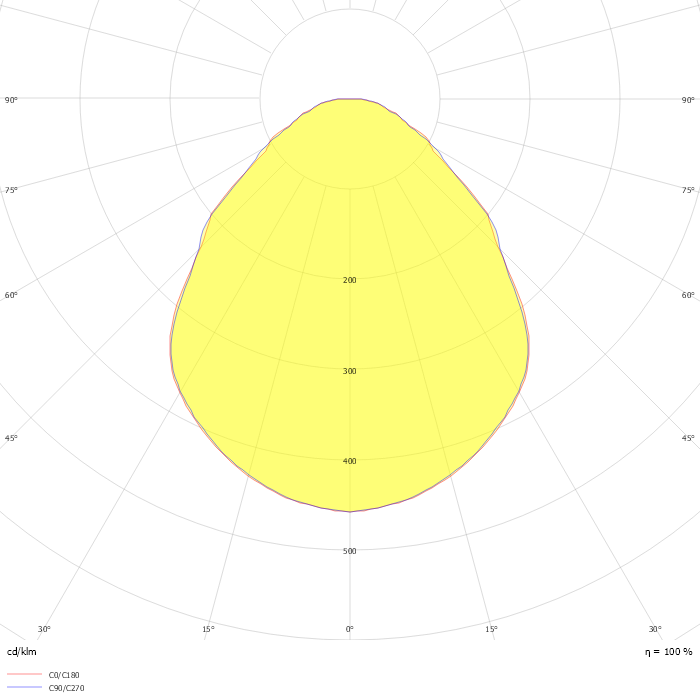

Photometric data
ZIP file
