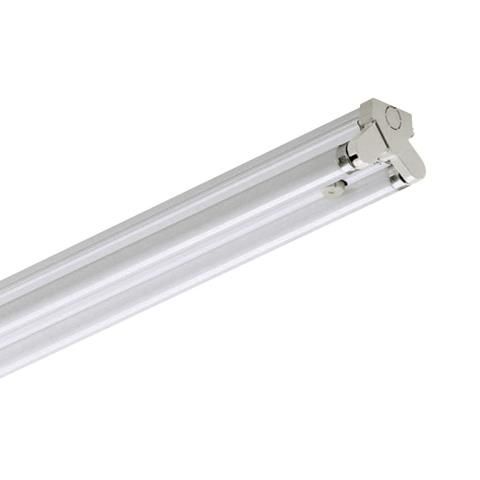

Lineco – an economical choice. Lineco TMS022 is a functional and economical surface-mounted batten for 1 or 2 TL-D fluorescent lamps. It offers a choice of two optics, for symmetrical and asymmetrical lighting. Installation is quick and tool-less and can be carried out single-handedly. The repositionable contact block enables flexible connection (with cable entry centrally or via the end caps). A wide range of snap-on attachments is available.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
2 x LED | 85 W | 5700 lm | 126 lm/W | 3000 K | 100 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 1225 mm
Width: 98 mm
Height: 62 mm
Electric
System power: 85 W

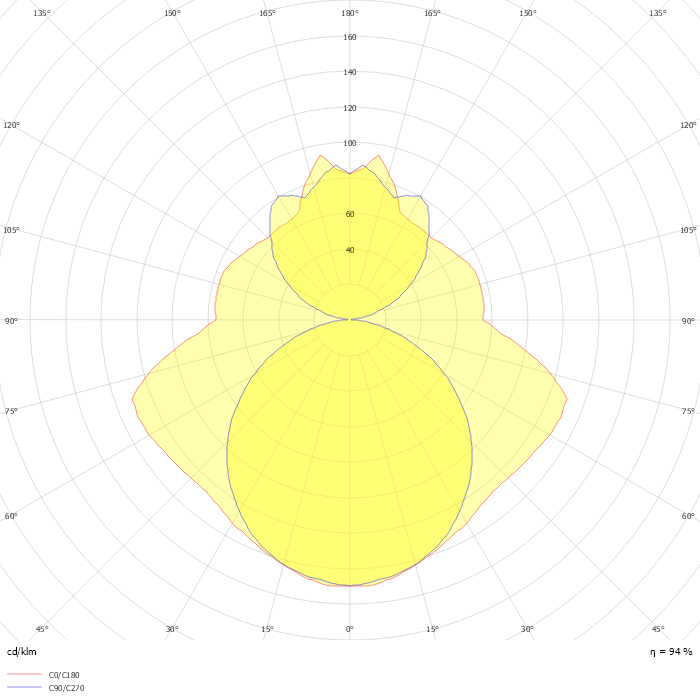

Photometric data
ZIP file
