Housing: in die-cast aluminium. Attachment: suited for poles with a diameter of 60 mm. Diffuser: in anti-glare polycarbonate, shatterproof and V2 self-extinguishing, UV stablised, externally smooth and dustproof. Coating: pre-treatment of metal surface, polyester powder coating to ensure resistance to corrosion and salt spray fogs, UV stabilised. Heat Sink: built-in. Low flicker: luminaire with very low flicker: evenly distributed light for greater visual safety. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Equipment: - selector switch. - IP67 quick connector. - anti-condensation valve. - temperature controller with auto-reset. - EN 61547 compliant surge protection. - ADVANCED PROG built-in functions. Mounting: on 76/60 mm diameter pole or bracket.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 29 W | 3432 lm | 118 lm/W | 3000 K | 70 |
Mounting mode
Pole top mounted
Shape and measurements
Length: 1065 mm
Width: 1065 mm
Height: 554 mm
Adjustability
Fixed
Design
Material impression: Aluminum
Colour of housing: Anthracite / graphite
Electric
System power: 29 W
Appliance Class: II
Protection
IP: 65
IK: 09
Designation labels: CE
Other operating numbers
Ambient temperature range: -20...40°C

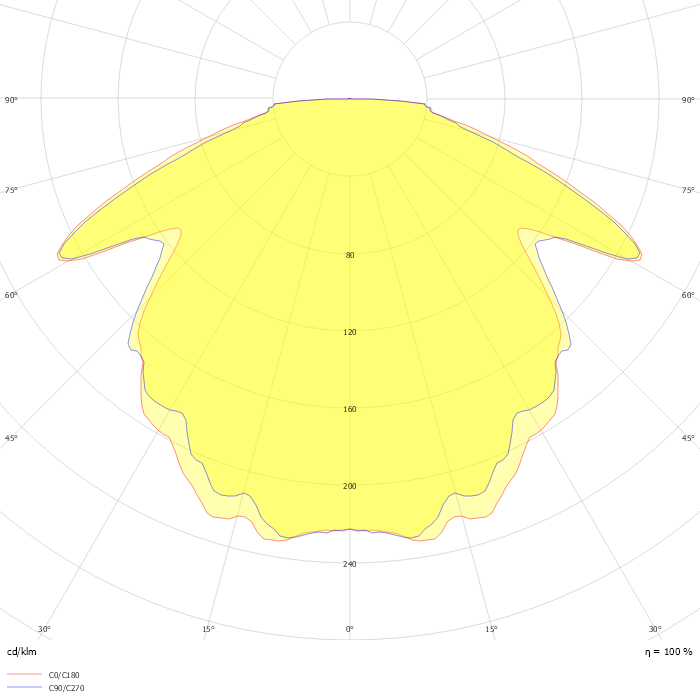

Photometric data
ZIP file
