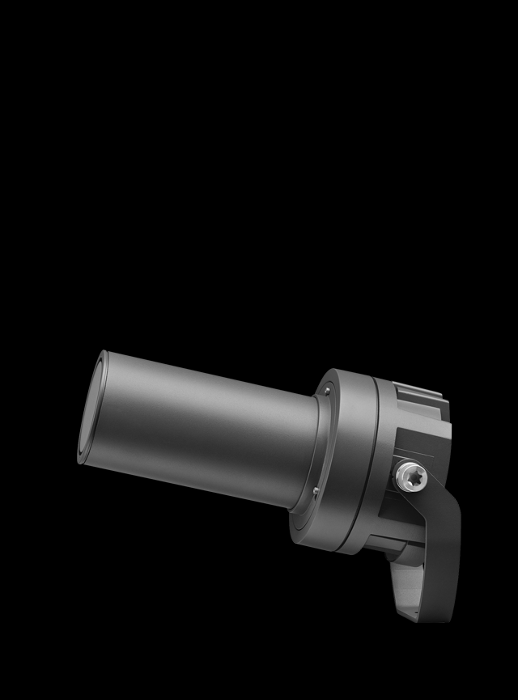

Profile Projector [FP] for framing applications, polygon shape. Spherical/triple flat convex lens system. Profile Projector [GP] for projection of gobos on a surface. Spherical/triple flat convex lens system. Gobo motif on request, to be ordered separately. Profile Projector [ZP] for zoom spot. Spherical/triple flat convex lens system. IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. One cable gland. Second gland for through wiring on request. PMMA LED lens array. Factory installed LED circuit board. LED board can be removed for upgrading. Integral EC electronic converter, thermally separated.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 37 W | 4900 lm | 81 lm/W | 4000 K | 80 |
Mounting mode
Standing / Bollard
Shape and measurements
Height: 30 mm
Diameter: 30 mm
Weight: 8.2 kg
Electric
System power: 42 W
Appliance Class: I
Protection
IP: 66
IK: 07

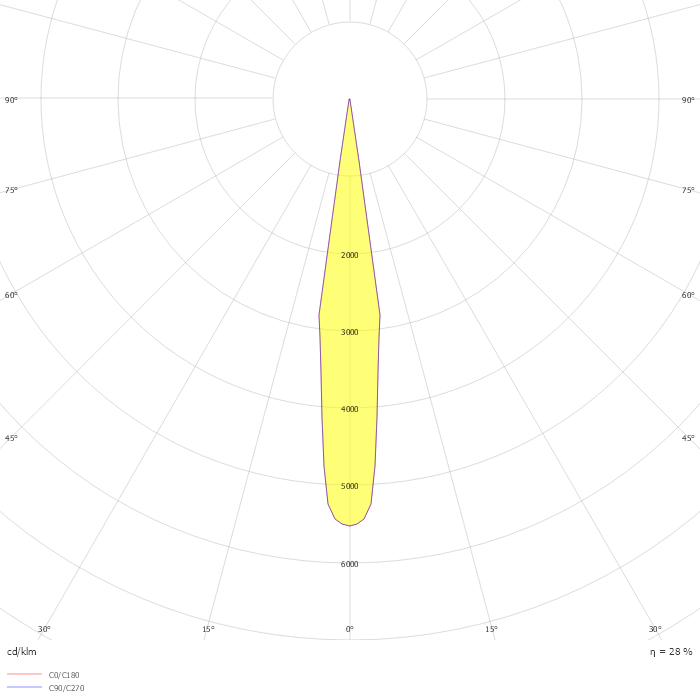

Photometric data
ZIP file
