Product data sheet

BROADSWORD

BQCH14KW

Whitecroft

Product image 1: BROADSWORD
Product image 1: BROADSWORD

Product image 1: BROADSWORD



IP
20

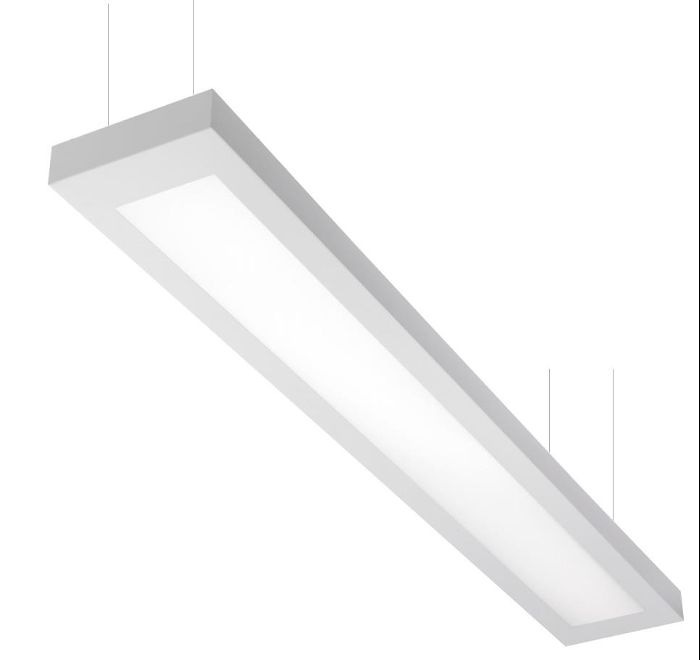

Suspended LED luminaire with direct: indirect lighting ratio of 75:25. Advanced Quadraprism optic providing glare control and maximum diffusion. For continuous or standalone configuration - as Whitecroft Lighting BROADSWORD Emergency Output = 275 Lumens

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 30.6 W 3446 lm 113 lm/W 4000 K 80
BROADSWORD

BROADSWORD

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 1630 mm

Width: 235 mm

Height: 70 mm

Adjustability

Fixed

Electric

System power: 30.6 W

Protection

IP: 20

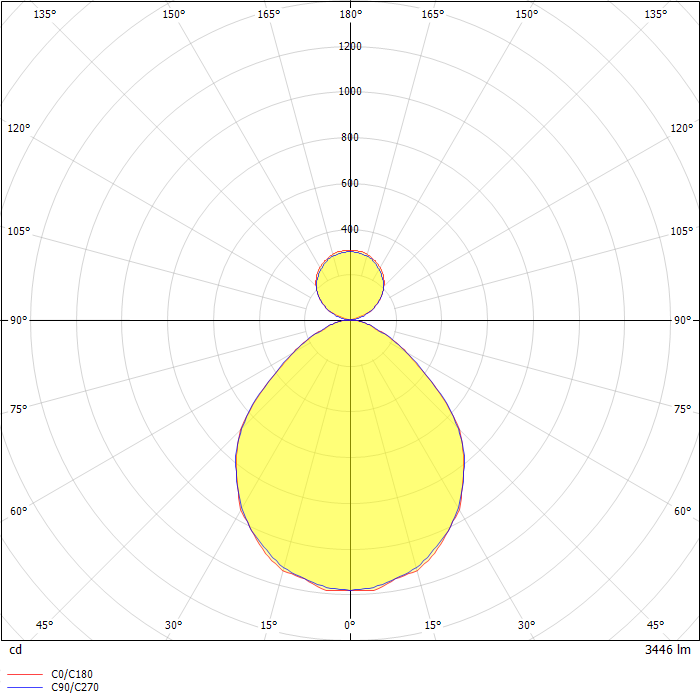

Photometric data

ZIP file

Download file
