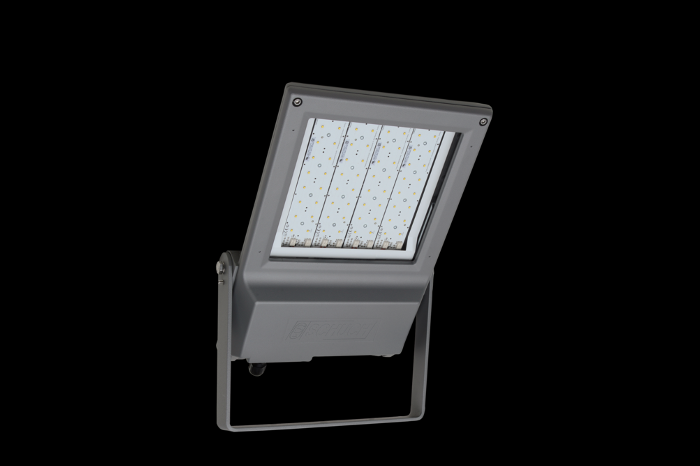

LED floodlight, FOCO L, 70 W, 8790 lm, 126 lm/W, Class I, IP66, asymmetrical beam, 4000 K, CRI≥ 80, Ta -40 °C/+40 °C, L90>100000 h (@ Ta max), DALI (DIMD), Pane Safety glass clear, Housing Die-cast aluminium, Colour grey, DB702N. LED floodlight FOCO L of the GreenLine series with outstanding sustainable product design. Consisting of powder-coated die-cast aluminium housing, two-part. Upper part with LED modules, lower part with ECG, tempered safety glass pane, cable entry and strain relief, hinged. Zhaga LED modules, direct beam, Multi-Layer Technology. ECG with high surge protection, overload and short circuit protection. Mounting bracket with swivel range of 180°. Resource-saving and environmentally friendly thanks to interchangeability of components (no disposable light fitting). Length 573,00 mm, Width/Diameter 360,00 mm, Height 100,00 mm, Net weight 9,50 kg.
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 70 W | 8790 lm | 126 lm/W | 4000 K | 80 |
Mounting mode
Pole top mounted, Wall mounted
Shape and measurements
Length: 573 mm
Width: 360 mm
Height: 100 mm
Adjustability
Fixed
Electric
System power: 70 W
Appliance Class: I
Protection
IP: 66
IK: 10
Designation labels: CE

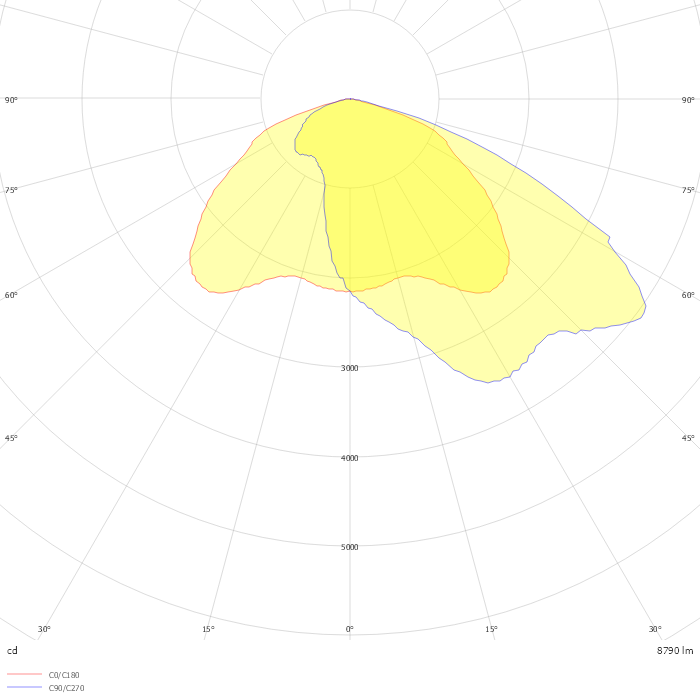

Photometric data
ZIP file
