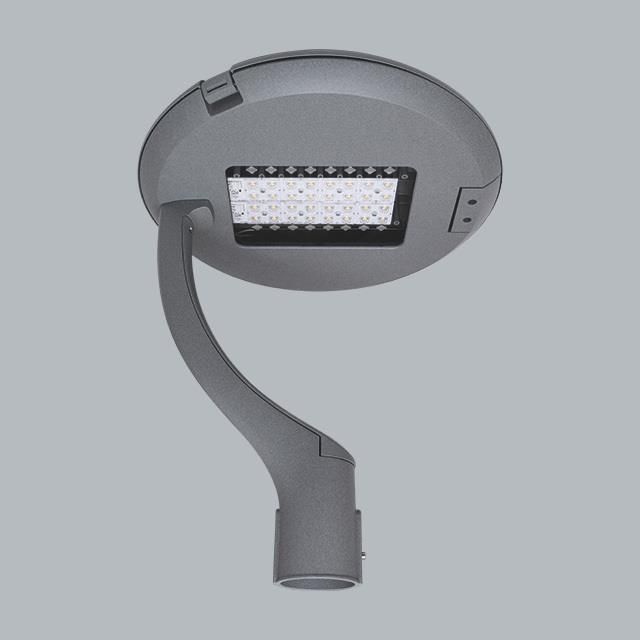

Outdoor luminaire. Assembly: mounted on poles. The body material is aluminum. Colour - RAL 9007 (dark gray). Luminaire dimensions: Ø490 x 560 mm. Weight 5,55 kg. Diffuser: hardened transparent glass. Beam angle: (C0-C180) / (C90-C270) - 118,2° / 112,4°. Light source type: LED. Colour of the light 3000 K. CRI>70. Lifetime of LED sources: 100000 h L80/B10. Luminaire luminous flux: 5277 lm. Power of luminaire: 40,5 W. Luminaire's light efficiency: 130,3 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,9. Circuit load capacity: 15 (B10), 25 (B16), 25 (C10), 40 (C16). Operating temperature range: -40 ÷ 40° C. Protection degree: IP66. Impact resistant: IK09. Protection against electric shock: II.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
2 x LED | 20.25 W | 3209 lm | 158 lm/W | 3000 K | 70 |
Mounting mode
Pole top mounted
Shape and measurements
Height: 560 mm
Diameter: 490 mm
Adjustability
Fixed
Design
Colour of housing: Anthracite / graphite, Silver gray
Electric
System power: 40.5 W
Appliance Class: II
Protection
IP: 66
IK: 09
Other operating numbers
Ambient temperature range: -40...40°C

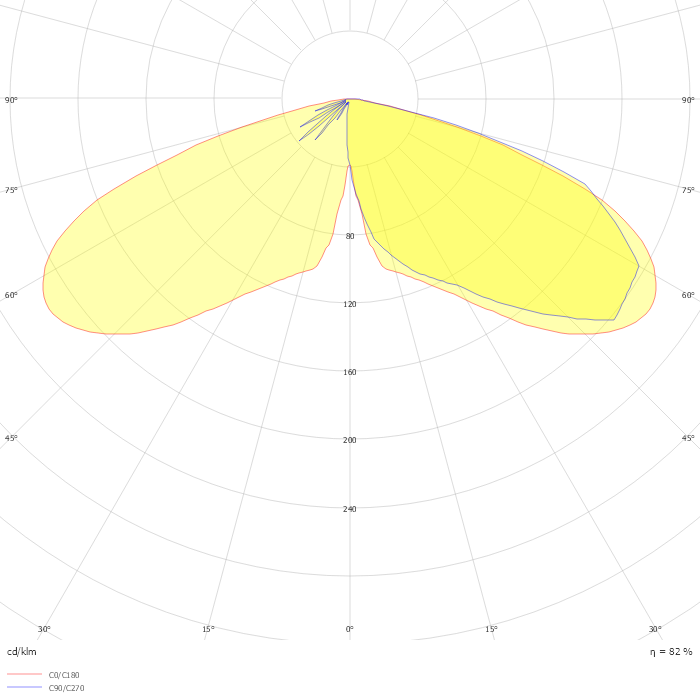

Photometric data
ZIP file
