Product data sheet

Jupiter Pro 2200 White 60° 2090lm 3000K Ra>90 DALI

960310

SG Armaturen

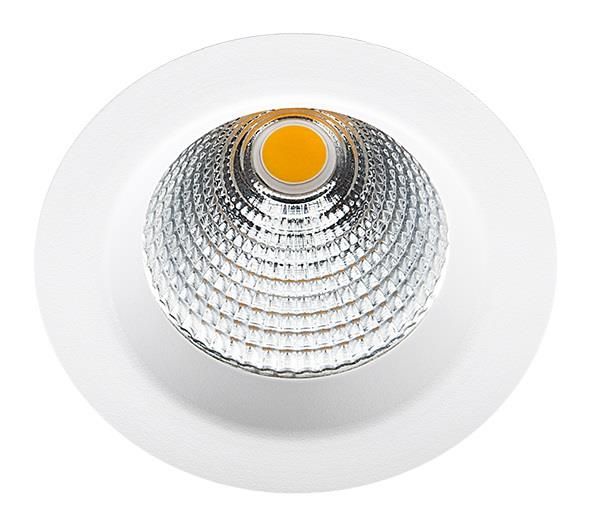

Product image 1: Jupiter Pro 2200 White 60° 2090lm 3000K Ra>90 DALI
Product image 1: Jupiter Pro 2200 White 60° 2090lm 3000K Ra>90 DALI

Product image 1: Jupiter Pro 2200 White 60° 2090lm 3000K Ra>90 DALI



IP
44

Pro LED downlight for indoor or outdoor mounting. Powerful lumen output via the powerful recessed LED chip. Driver surface-mounted with quick junction box with quick clips for additional looping. Made of die-cast powder-coated aluminium, glass diffuser. Light distribution Direct - Beam angle 60° Light technic LED (not exchangeable) 22W 3000K Ra>90 SDCM 2 L90/B10 >50,000 hrs at Ta=25°C Control/Dimming DALI Protection Class II SELV IP65 Energy and approvals A+ CE Materials and… [more]

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 22 W 2090 lm 95 lm/W 3000 K 90
Jupiter Pro 2200 White 60° 2090lm 3000K Ra>90 DALI

Jupiter Pro 2200 White 60° 2090lm 3000K Ra>90 DALI

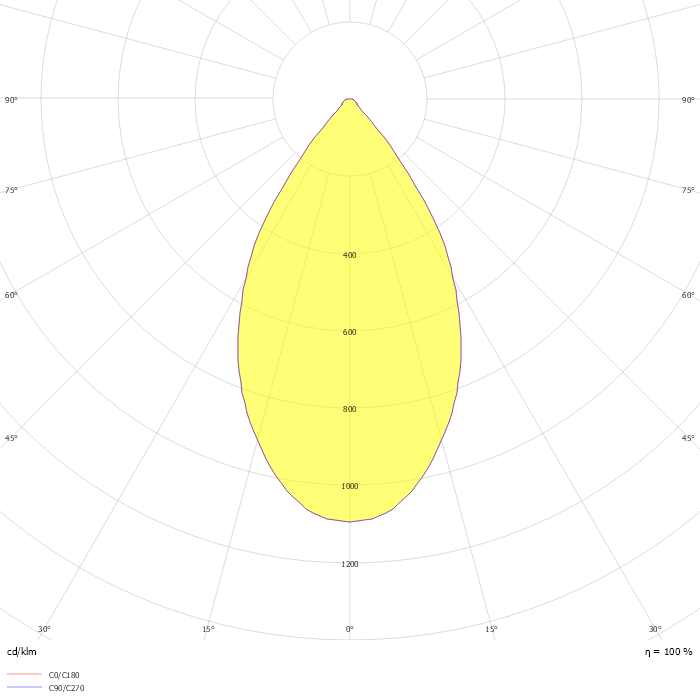

Light output 1

1 x LED

LOR:100%
Total flux:2091 lm
Total power:22 W

Mounting mode

Ceiling recessed

Shape and measurements

Length: 114 mm

Width: 114 mm

Height: 106 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 22 W

Appliance Class: II

Protection

IP: 44
