Designed for use in hospital wards and compliant with the CIBSE 2008 Hospital Lighting Guide (LG2). LED and T5 versions. Separate switching facility for up and downlight operation. Optional centrally mounted 1W LED night light contained within the lower (downlight) compartment. Shallow depth extruded aluminium body with die-cast aluminium ends designed for easy cleaning and a curved and sloping top discourages use as a shelf and helps minimise dust build-up.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 39 W | 3755 lm | 85 lm/W | 4000 K | 80 |
Mounting mode
Wall mounted
Shape and measurements
Length: 1317 mm
Width: 75 mm
Height: 196 mm
Adjustability
Fixed
Electric
System power: 44 W
Protection
IP: 40

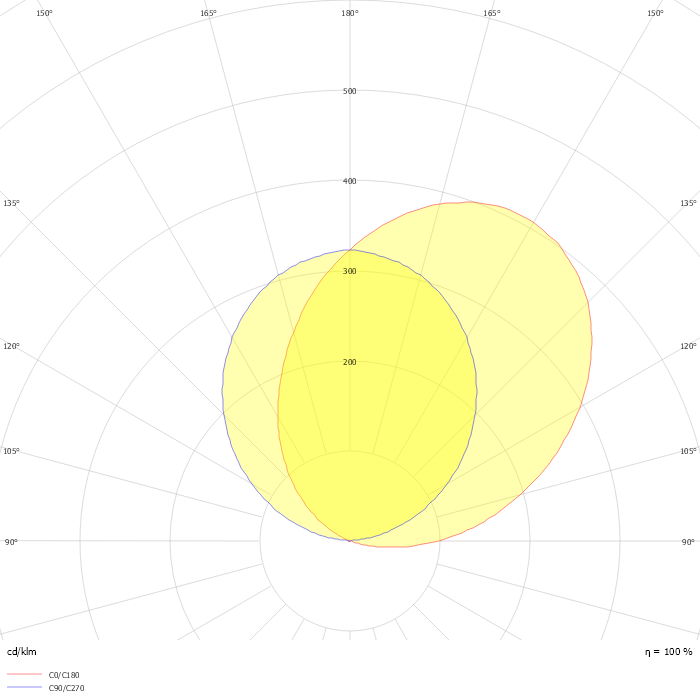

Photometric data
ZIP file
