Product data sheet

NIX 6700 120º E 21 IP65 840 / L-1200 mm

11.0030.2401.21

LUXIONA

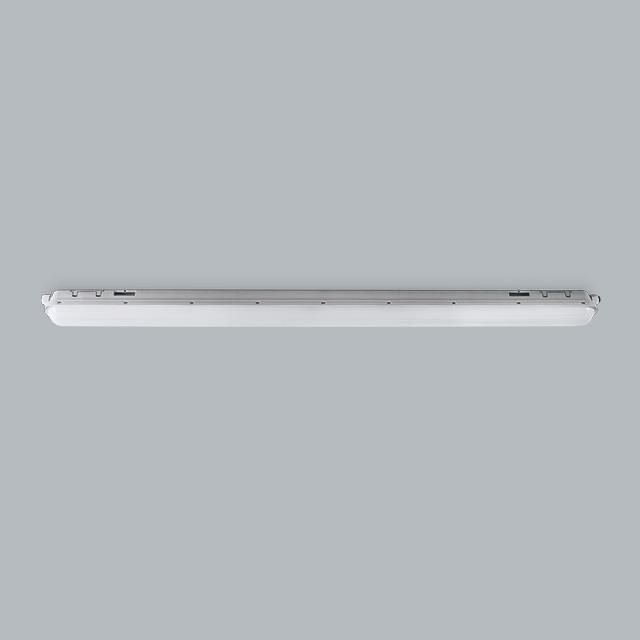

Nix is a range of waterproof LED shades with multiple installation possibilities, to be placed on walls and ceilings or suspended. These luminaires are specifically indicated to ligh up premises where a high environmental protection is necessary: high levels of humidity, pollution and impact risks. Assembly: surface mounted on ceiling. The body material is polycarbonate. Colour - RAL 9006 (grey, metallic, fine structure). Luminaire dimensions: 99 x 1200 x 70 mm. Weight 2,647 kg. Diffuser: opalescent polycarbonate. Beam angle: 120°. Light source type: LED. Colour of the light 4000 K. SDCM=3. CRI>80. Lifetime of LED sources: 50000 h L70/B10. Luminaire luminous flux: 5895 lm. Power of luminaire: 52 W. Luminaire's light efficiency: 113,4 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,9. Operating temperature range: -20 ÷ 35° C. Protection degree: IP65. Protection against electric shock: I.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 52 W 5895 lm 113 lm/W 4000 K 80
NIX 6700 120º E 21 IP65 840 / L-1200 mm

NIX 6700 120º E 21 IP65 840 / L-1200 mm

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 99 mm

Width: 1200 mm

Height: 70 mm

Adjustability

Fixed

Design

Colour of housing: Silver gray

Electric

System power: 52 W

Appliance Class: I

Protection

IP: 65

Other operating numbers

Ambient temperature range: -20...35°C

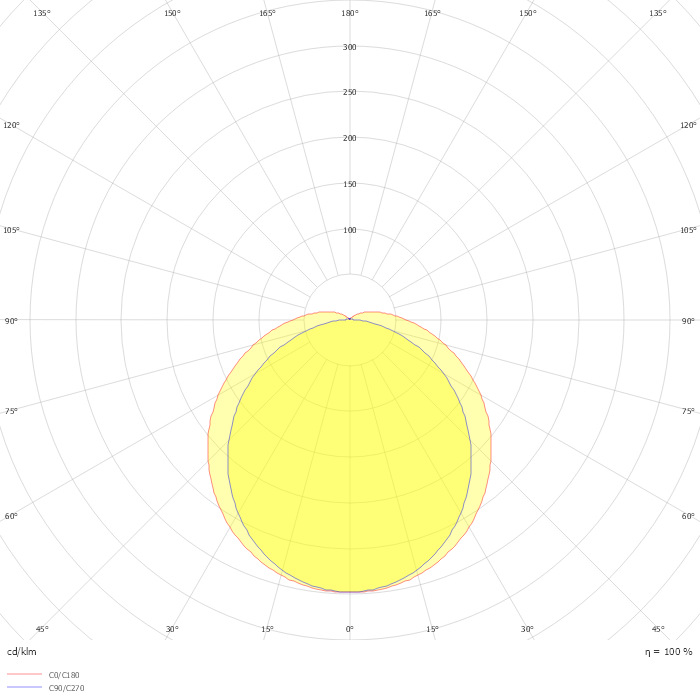

Photometric data

ZIP file
