Product data sheet

ELECTRA 1 12500 830 WBA

Glamox

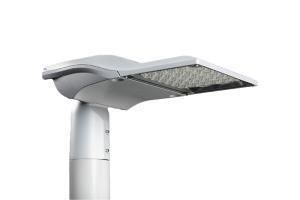

Product image 1: ELECTRA 1 12500 830 WBA
Product image 1: ELECTRA 1 12500 830 WBA

Product image 1: ELECTRA 1 12500 830 WBA



IP
66

IK
09

Light source: LED Lumen out: 12507 CRI: 80 Colour temperature: 3000 Total effect: 89 Lumen per watt: 140 Optic: WBA Driver: DALI;HF;ND1;ND2;ZSB;ZSD;ZSU Main body material: Aluminium IP class: 66 IK class: 9

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 89 W 12507 lm 141 lm/W 3000 K 80
ELECTRA 1 12500 830 WBA

ELECTRA 1 12500 830 WBA

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted, Wall mounted

Shape and measurements

Length: 434 mm

Width: 250 mm

Height: 87 mm

Adjustability

Fixed

Electric

System power: 89 W

Protection

IP: 66

IK: 09

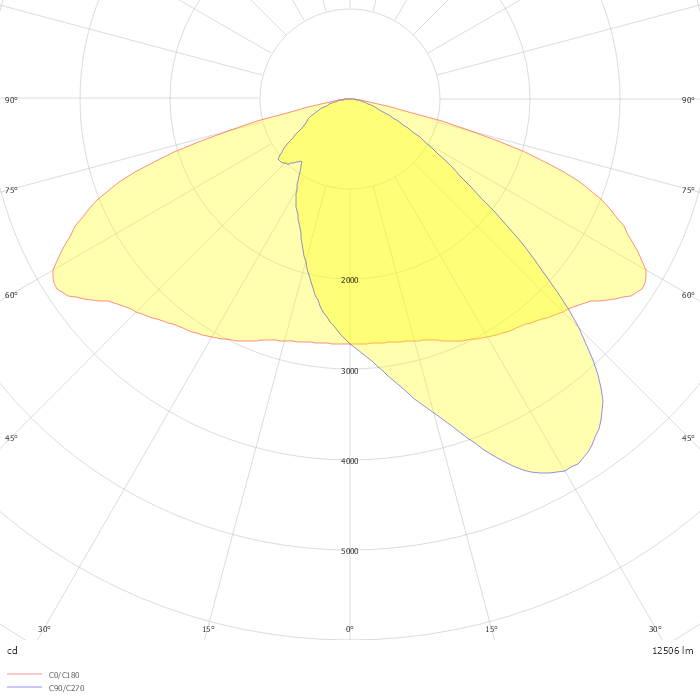

Photometric data

ZIP file

Download file
