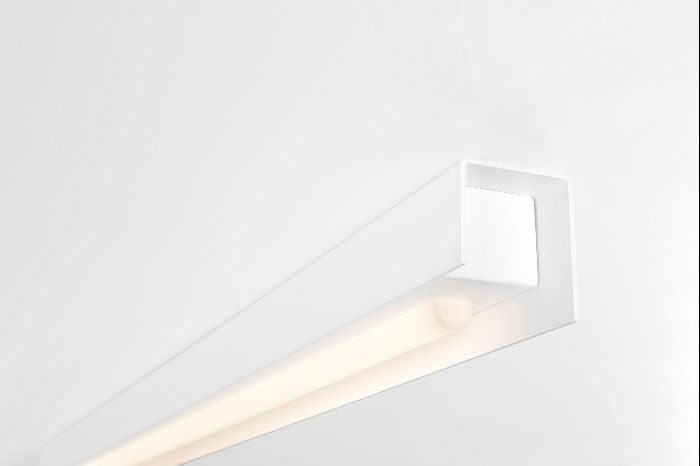

In simple terms, United is a LED module dressed like a naked ‘seamless’ lamp in a powder coated aluminum housing – designed in cooperation with Couvreur-Devos. It is precisely that plain simplicity that makes it so special. To start with, the exposed lamps ensure higher efficiency, thus reducing power consumption. That efficiency can be increased even further when selecting a white interior to amplify light reflection. United consists ofone or more U-profiles, which are available with or without a cover. The covers are available in white or black structure, combined with a white structure or matt black lining, thereby offering four different color combinations. Installing several modules in a linear design, or alongside each other, creates a repetitive effect with handsome results. United Asy creates an asymmetrical light beam that results in a homogeneous wall wash effect.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 14 W | 1835 lm | 131 lm/W | 2700 K | 92 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 974 mm
Width: 47 mm
Height: 56 mm
Adjustability
Fixed
Electric
System power: 17 W
Protection
IP: 20

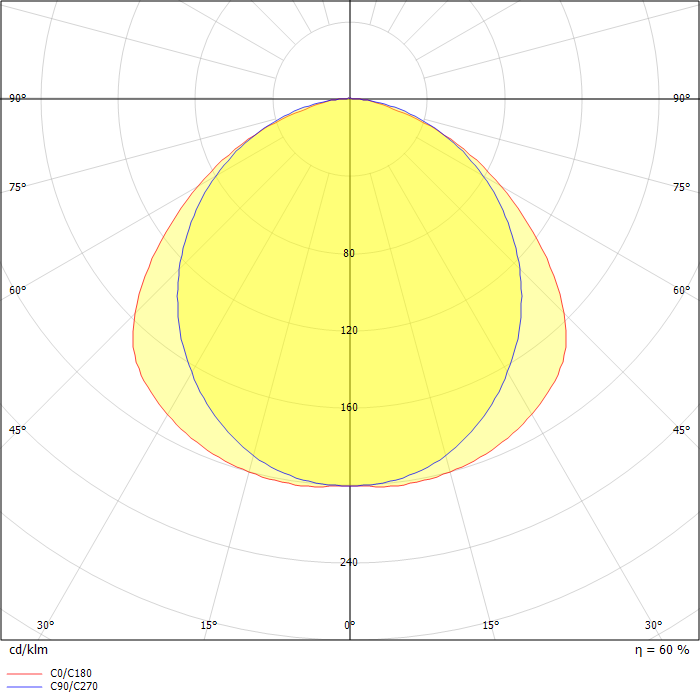

Photometric data
ZIP file
