Product data sheet

Gino 2 wall luminaires

GI-31621-VW-W40

LIGMAN

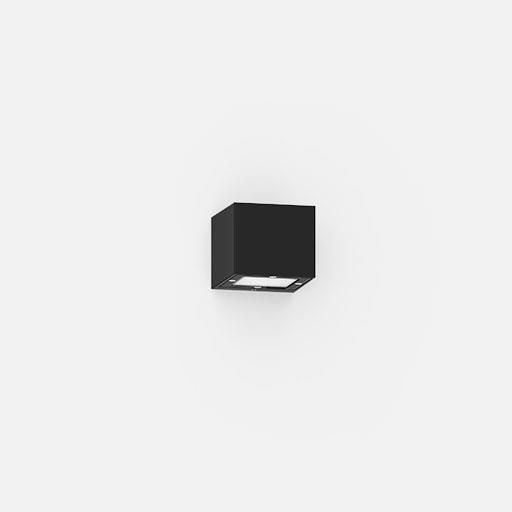

Product image 1: Gino 2 wall luminaires
Product image 1: Gino 2 wall luminaires

Product image 1: Gino 2 wall luminaires



IP
65

IK
04

- Lamp LED - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour Temperature 3000K ,4000K - Die-cast aluminium housing and frame pre-treated before powder coating ensuring high corrosion resistance - Single cable entry - Stainless steel fasteners in grade 316 - Durable silicone rubber gasket - Clear, impact-resistant, toughened glass diffuser - Integral control gear

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 5.6 W 426 lm 76 lm/W 4032 K 80
Gino 2 wall luminaires

Gino 2 wall luminaires

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Length: 91 mm

Width: 100 mm

Height: 81 mm

Weight: 1 kg

Adjustability

Fixed

Design

Colour of housing: Black, White, Silver gray

Glare protection

Glare protection: UGR < 19

Electric

System power: 5.6 W

Voltage: 230 V AC

Ballast: ECG

Controller: Dimmable 1..10V, DALI

Appliance Class: I

Protection

IP: 65

IK: 04

Surface temperature: 40°C

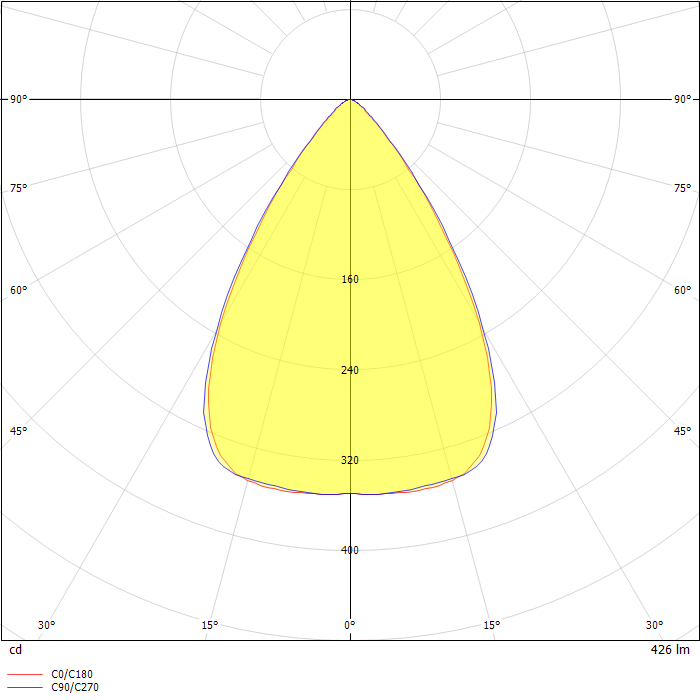

Photometric data

ZIP file

Download file
