Product data sheet

Tracklight 40 - WW - 35deg

L7120263

Proled (MBN GmbH)

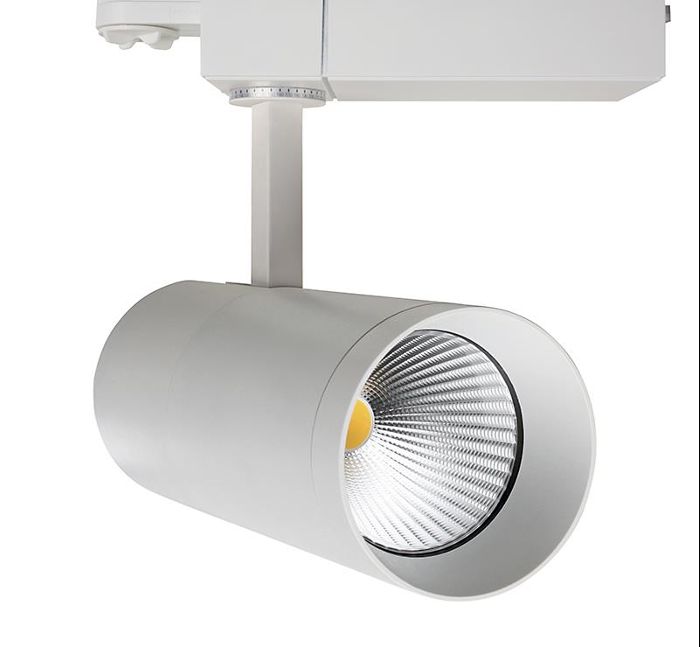

Product image 1: Tracklight 40 - WW - 35deg
Product image 1: Tracklight 40 - WW - 35deg

Product image 1: Tracklight 40 - WW - 35deg



IP
40

Tracklight for power track (Ring Standard white is included)

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 42 W 3000 lm 71 lm/W 3000 K 80
Tracklight 40 - WW - 35deg

Tracklight 40 - WW - 35deg

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

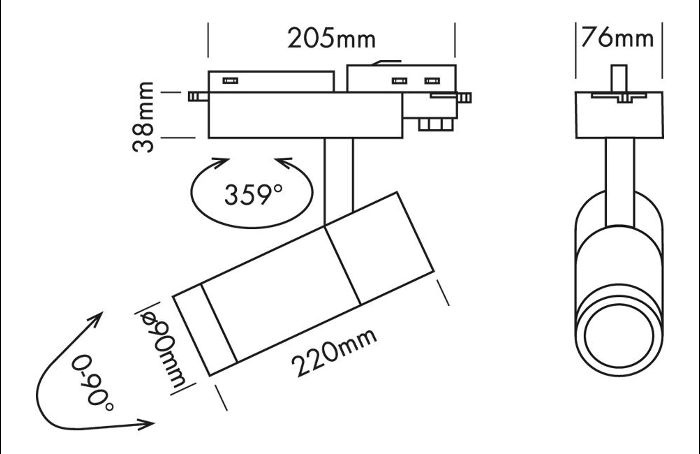

Shape and measurements

Length: 90 mm

Width: 220 mm

Height: 240 mm

Weight: 1.6 kg

Adjustability

Rotatable, Tiltable

Electric

System power: 42 W

Appliance Class: I

Protection

IP: 40

Other operating numbers

Ambient temperature range: -10...45°C

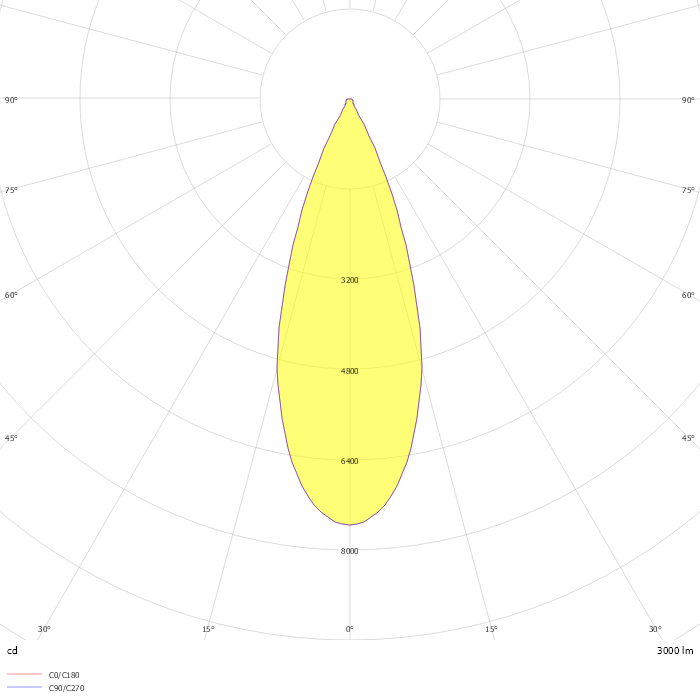

Photometric data

ZIP file

Download file
