Product data sheet

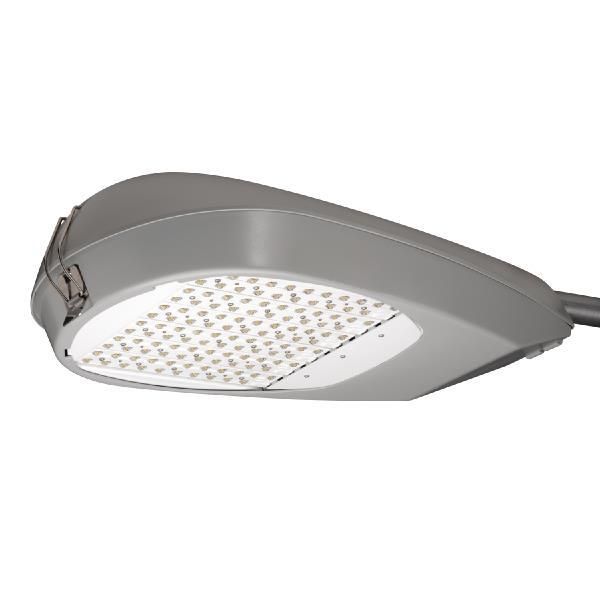

OVF LED Roadway Large Cobrahead

OVF-F06-LED-E-U-5XQ-7030

Cooper Lighting

Die-cast aluminum housing, door with stainless steel bail latch, Integral hinges for hands-free maintenance and tool-less entry, Optical design creates consistent distribution and scalability, Choice of 12 high-efficiency, patent pending AccuLED Optics™, Offered standard in 4000K (+/- 275K) CCT and nominal 70 CRI, Suitable for operation in -40°C to 40°C ambient environments, 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation, Proprietary circuit module withstands 10kV of transient line surge, Five-year limited warranty

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 156.5 W 13989 lm 89 lm/W 3000 K 75
OVF LED Roadway Large Cobrahead

OVF LED Roadway Large Cobrahead

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 52 mm

Width: 305 mm

Height: 10 mm

Adjustability

Fixed

Electric

System power: 156.5 W

Protection

IP: 47

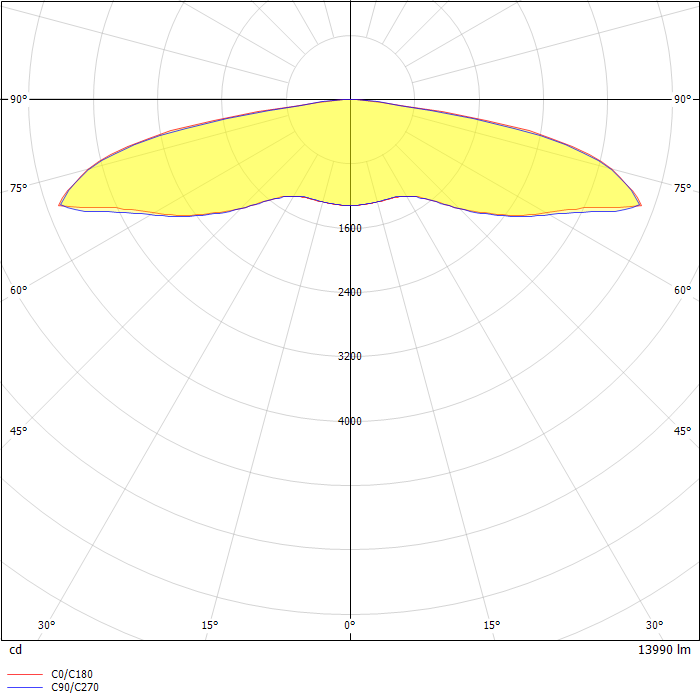

Photometric data

ZIP file
