Product data sheet

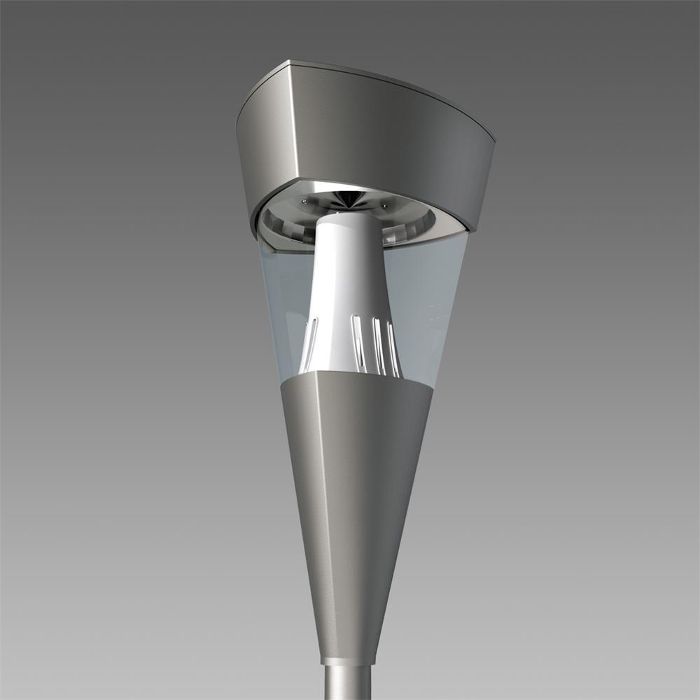

1513 Torcia LED COB 3000K CRI 80 60.4W CLD Graphite

423251-39

Disano

Housing: in die-cast aluminium. Attachment: suited for poles with a diameter of 60 mm. Diffuser: in polycarbonate, transparent, anti-glare, shatterproof and V2 self-extinguishing, UV stablised. Coating: pre-treatment of metal surface, polyester powder coating to ensure resistance to corrosion and salt spray fogs, UV stabilised. Special coating: upon request: available with coating tested to withstand corrosion tests in agressive artificial atmospheres (UNI EN ISO 9227) or marine environments (sea front). Heat Sink: built-in. Low flicker: luminaire with very low flicker: evenly distributed light for greater visual safety. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Equipment: - IP67 quick connector. - anti-condensation valve. - temperature controller with auto-reset. - EN 61547 compliant surge protection. Mounting: on 60 mm diameter pole or bracket.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x cob-1513_3k 60.4 W 4706 lm 78 lm/W 3000 K 80
1513 Torcia LED COB 3000K CRI 80 60.4W CLD Graphite

1513 Torcia LED COB 3000K CRI 80 60.4W CLD Graphite

Light output 1

1 x cob-1513_3k

Mounting mode

Pole top mounted

Shape and measurements

Length: 538 mm

Width: 533 mm

Height: 765 mm

Adjustability

Fixed

Design

Material impression: Aluminum

Colour of housing: Anthracite / graphite

Electric

System power: 60.4 W

Appliance Class: II

Protection

IP: 66

IK: 08

Designation labels: CE

Other operating numbers

Ambient temperature range: -20...40°C

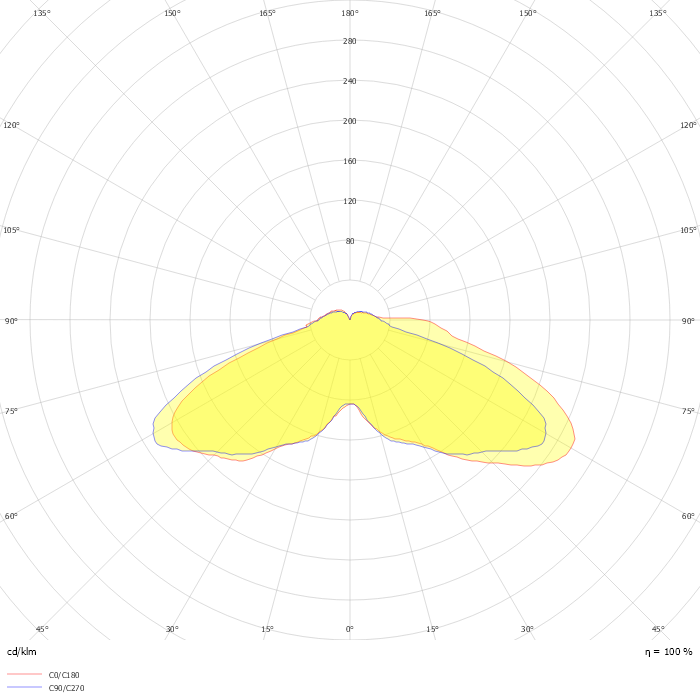

Photometric data

ZIP file
