Product data sheet

FLAT POLYMERO XXL

311694.002.1.76

RZB

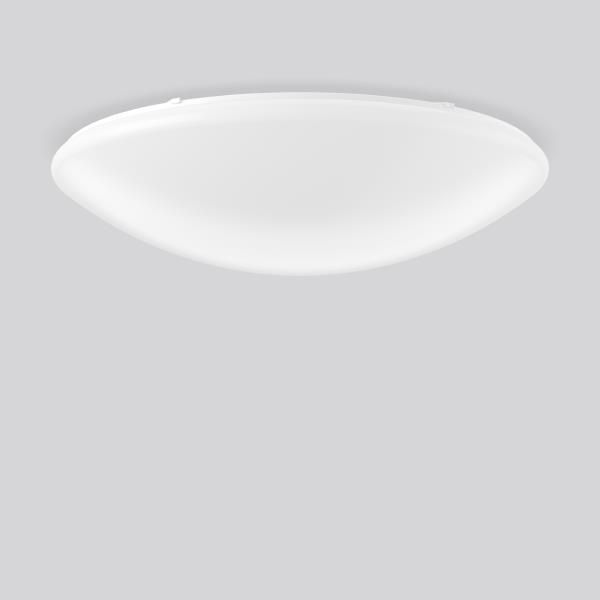

Product image 1: FLAT POLYMERO XXL
Product image 1: FLAT POLYMERO XXL

Product image 1: FLAT POLYMERO XXL



IP
40

IK
07

Series: FLAT POLYMERO XXL Decorative round surface-mounted luminaire. Base: metal, powder-coated. Diffuser made of non-yellowing plastic (PMMA), opal. Diffuser fastening: sash lock. Colour: white Diameter: 1040 mm Height: 230 mm Lamp: LED Socket: without socket Colour temperature: 4000K Colour rendering index (CRI): 80 System power: 100 W Rated luminous flux: 10300 lm Beam angle Down: 117° Luminous efficiency: 103 lm/W Control gear: Converter, dimmable, DALI Protection class: I Type of protection: IP 40

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 100 W 10300 lm 103 lm/W 4000 K 80
FLAT POLYMERO XXL

FLAT POLYMERO XXL

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Height: 230 mm

Diameter: 1040 mm

Adjustability

Fixed

Electric

System power: 100 W

Protection

IP: 40

IK: 07

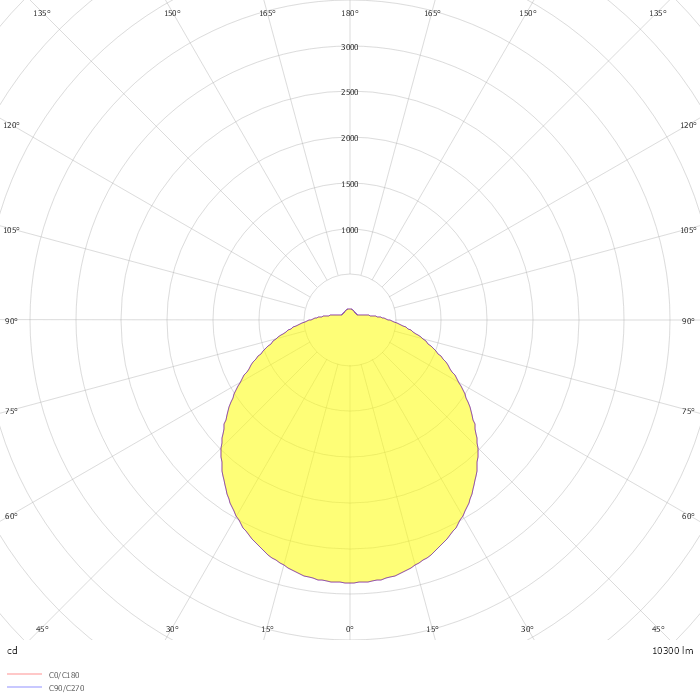

Photometric data

ZIP file

Download file
