Product data sheet

URail LED spot Circle 5W black matt/chrome 4000K metal/plastic dimmable

96939

Paulmann

Product image 1: URail LED spot Circle 5W black matt/chrome 4000K metal/plastic dimmable
Product image 1: URail LED spot Circle 5W black matt/chrome 4000K metal/plastic dimmable

Product image 1: URail LED spot Circle 5W black matt/chrome 4000K metal/plastic dimmable



IP
20

The URail rail luminaire Circle in black matt is equipped with neutral white LEDs and is compatible with all URail items. In combination with the corresponding URail components, you can create your own individual lighting system with a total output of up to 1,000 watt.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 5 W 180 lm 36 lm/W 4000 K 80
URail LED spot Circle 5W black matt/chrome 4000K metal/plastic dimmable

URail LED spot Circle 5W black matt/chrome 4000K metal/plastic dimmable

Light output 1

1 x LED

Mounting mode

Ceiling mounted, Contact rail

Shape and measurements

Length: 59 mm

Width: 20 mm

Height: 42 mm

Weight: 0.19 kg

Adjustability

Fixed

Design

Material impression: Aluminum

Colour of housing: Black

Electric

System power: 5 W

Appliance Class: II

Protection

IP: 20

Designation labels: CE

Other operating numbers

Ambient temperature range: 4...4°C

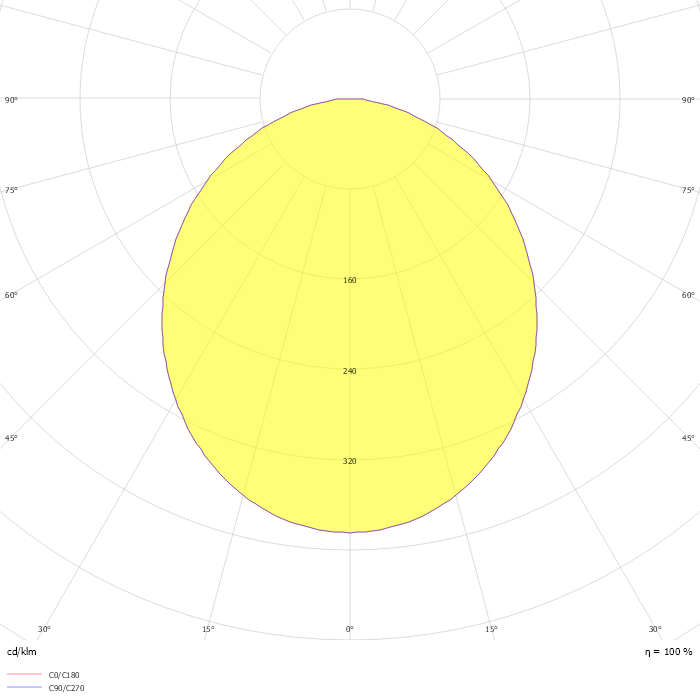

Photometric data

ZIP file

Download file
