Product data sheet

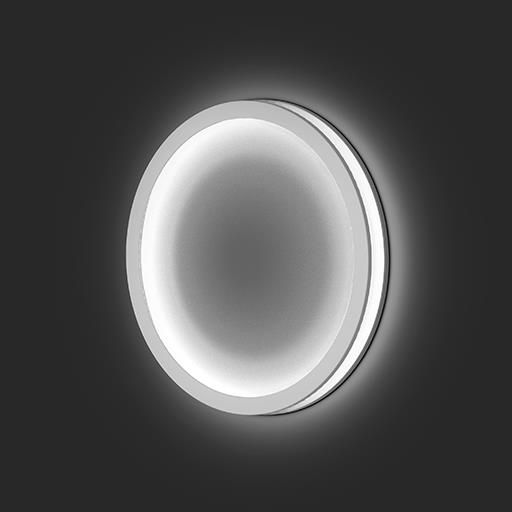

Ovix LED - 24W - 4000K

OV19285

Thorlux Lighting

High efficiency LED luminaires often have visible LEDs that can cause an unsightly appearance. Masking the LEDs may involve increasing the opacity of the diffuser , which has a negative effect on efficiency. Thorlux have opted to use a clear diffuser and an indirect light source to produce the Ovix, a highly efficient LED luminaire without the ‘spotting’ so often associated with high efficiency. The excellent lateral light distribution allows for wider spacings than possible with 38W 2D or existing LED luminaires.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 24 W 3685 lm 136 lm/W 4000 K 80
Ovix LED - 24W - 4000K

Ovix LED - 24W - 4000K

Light output 1

1 x LED

Mounting mode

Ceiling mounted, Wall mounted

Shape and measurements

Height: 51 mm

Diameter: 500 mm

Adjustability

Fixed

Electric

System power: 27 W

Protection

IP: 40

IK: 09

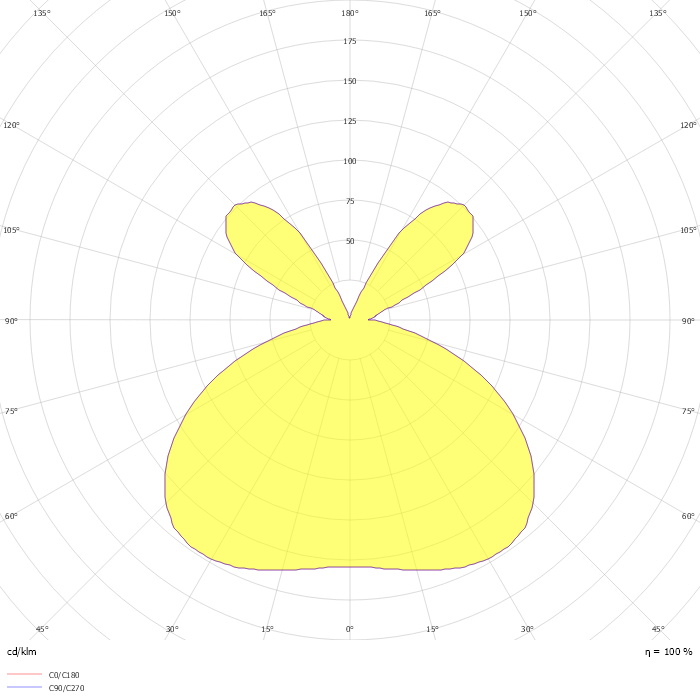

Photometric data

ZIP file
