Product data sheet

AME2 NM3 LE3

AME2 Emergency

Dextra

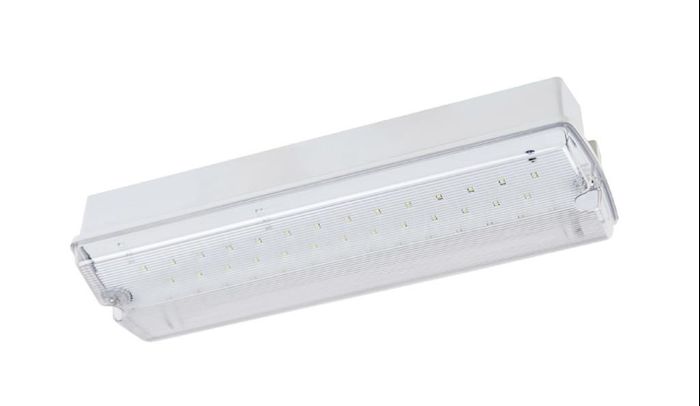

Product image 1: AME2 NM3 LE3
Product image 1: AME2 NM3 LE3

Product image 1: AME2 NM3 LE3



IP
65

IK
07

AME2 LED - IP65, IK07. Non-Maintained 3hr emergency luminaire, robust polycarbonate body and lens, white finish with clear reeded diffuser. Options: LS3 - Lithium Selftest (171 lumens output) LA3 - Lithium Autotest (171 lumens output) CB - Please specify 50v, 110v or 230v when ordering AME ELK - Emergency Legend Kit AME ELK ISO - Emergency Legend kit ISO 7010

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 2.5 W 171 lm 68 lm/W 4000 K 80
AME2 NM3 LE3

AME2 NM3 LE3

Light output 1 (integrated, emergency)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 352 mm

Width: 110 mm

Height: 65 mm

Adjustability

Fixed

Electric

System power: 2.5 W

Ballast: ECG

Information regarding emergency functions

Emergency lighting only

Emergency power supply: Single battery 3 h

Emergency sign: N/A

Protection

IP: 65

IK: 07

Designation labels: CE

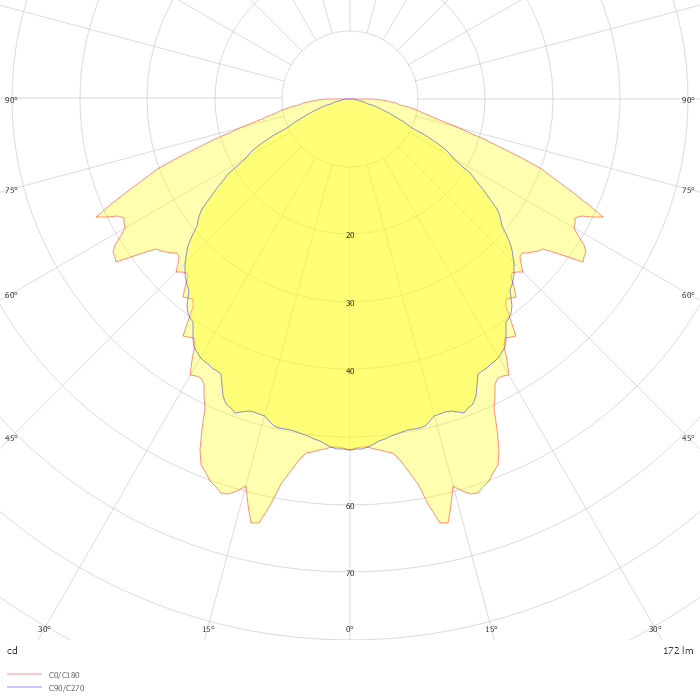

Photometric data

ZIP file

Download file
