Product data sheet

RACER MINI 826 17000 740 MBA

Glamox

Product image 1: RACER MINI 826 17000 740 MBA
Product image 1: RACER MINI 826 17000 740 MBA

Product image 1: RACER MINI 826 17000 740 MBA



IP
66

IK
08

Light source: LED Lumen out: 17000 CRI: 70 Colour temperature: 4000 Total effect: 126 Lumen per watt: 135 Optic: MBA Driver: HF Main body material: Aluminium/Steel IP class: 66 IK class: 8

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 126 W 17000 lm 135 lm/W 4000 K 70
RACER MINI 826 17000 740 MBA

RACER MINI 826 17000 740 MBA

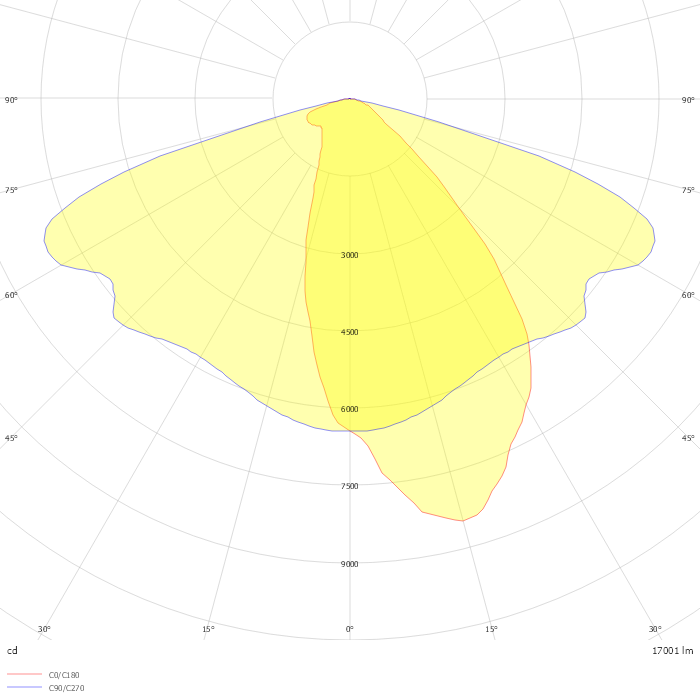

Light output 1 (integrated)

LED

LOR:100%
ULOR:84%
Total power:126 W

Mounting mode

Pole top mounted

Shape and measurements

Length: 345 mm

Width: 826 mm

Height: 107 mm

Adjustability

Fixed

Electric

System power: 126 W

Appliance Class: II

Protection

IP: 66

IK: 08
