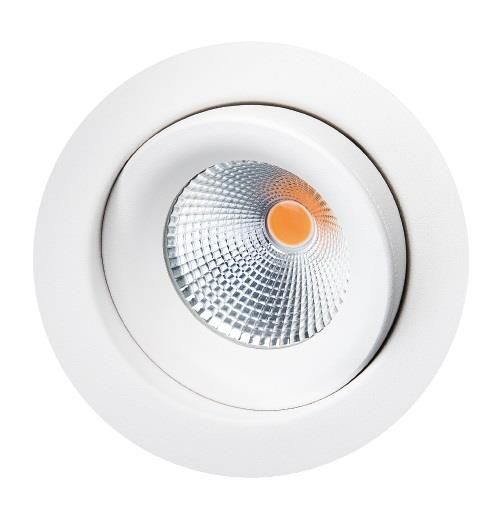

Junistar Eco Outdoor is a cost-efficient downlight for indoor and outdoor use with a 42° beam angle and 30° tilt function. A flexible diameter of Ø68-83mm makes Junistar Eco Outdoor a great choice for refurbishing older ceilings. Junistar Eco Outdoor is tested to be 100% airtight against plaster board ceilings. Light distribution Direct Light technic LED (not exchangeable) 7W 4000K Ra 98 SDCM 2 L90/B10 >100,000 hrs Control/Dimming Trailing edge dimming Protection Class II SELV IP44 Materials and finish Housing: Aluminium Colour: Matte white (RAL 9003) Optics: Tempered glass Mounting/Connection Recessed, Indoor / Outdoor Screwless terminal block Max. luminaires per circuit breaker: B10: 105, B16: 168, C10: 105, C16: 168
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 7 W | 620 lm | 89 lm/W | 4000 K | 98 |
Mounting mode
Ceiling recessed
Shape and measurements
Length: 90 mm
Width: 90 mm
Height: 50 mm
Adjustability
Tiltable
Design
Colour of housing: White
Electric
System power: 7 W
Appliance Class: III
Protection
IP: 44

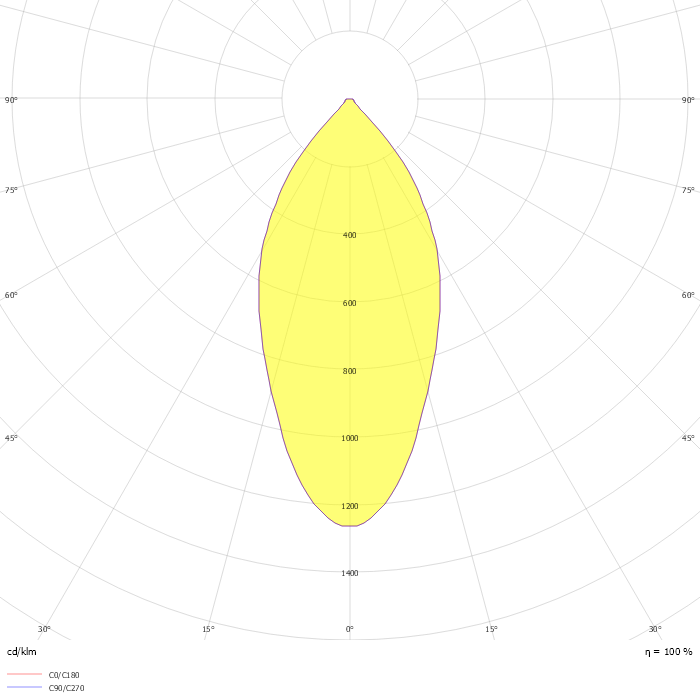

Photometric data
ZIP file
