Product data sheet

Flex Strip IP65 Digital 30

L68603

Proled (MBN GmbH)

Product image 1: Flex Strip IP65 Digital 30
Product image 1: Flex Strip IP65 Digital 30

Product image 1: Flex Strip IP65 Digital 30



Product image 2: Flex Strip IP65 Digital 30

Product image 2: Flex Strip IP65 Digital 30



Product image 3: Flex Strip IP65 Digital 30

Product image 3: Flex Strip IP65 Digital 30



IP
65

The PROLED FLEX STRIPS DIGITAL are perfect for pixel applications. With the MBNLED WS2812 PIXEL CONTROLLER or the DiGidot C4 controllers each LED can be controlled individually. - Digital controllable WS2813 LEDs. - Double data line. By failure of one LED, the data will be passed to the next LED. - To avoid a voltage drop, a new power input of 5 VDC is needed every 2,5m. - 3 colours on one chip, therefore 100% smooth colour mixing. - High flexibility - adaptable to round shapes. - installation with clamps or special glue, The 3M adhesive tape on the strip's backside (self adhesive) is only as fit-up aid. - IP65 for outdoor use (power supply cable/end caps IP65 when correctly sealed)

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 3.3 W 25 lm 8 lm/W 0 K -50
Flex Strip IP65 Digital 30

Flex Strip IP65 Digital 30

Light output 1 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 3.2 W 90 lm 28 lm/W 7247 K -18
Flex Strip IP65 Digital 30

Flex Strip IP65 Digital 30

Light output 2 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 3.2 W 35 lm 11 lm/W 0 K -29
Flex Strip IP65 Digital 30

Flex Strip IP65 Digital 30

Light output 3 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1002 mm

Width: 13 mm

Height: 6 mm

Adjustability

Fixed

Electric

System power: 9.7 W

Colour adjustable

Appliance Class: III

Protection

IP: 65

Other operating numbers

Ambient temperature range: -10...45°C

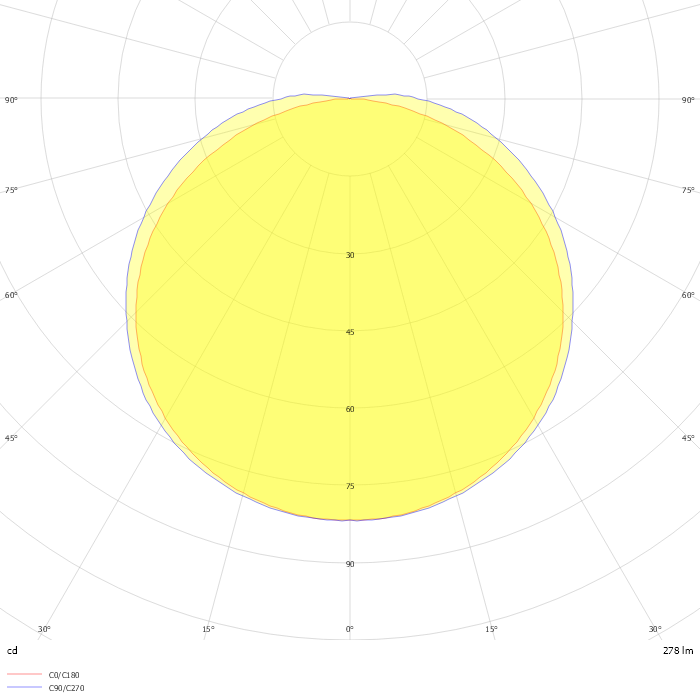

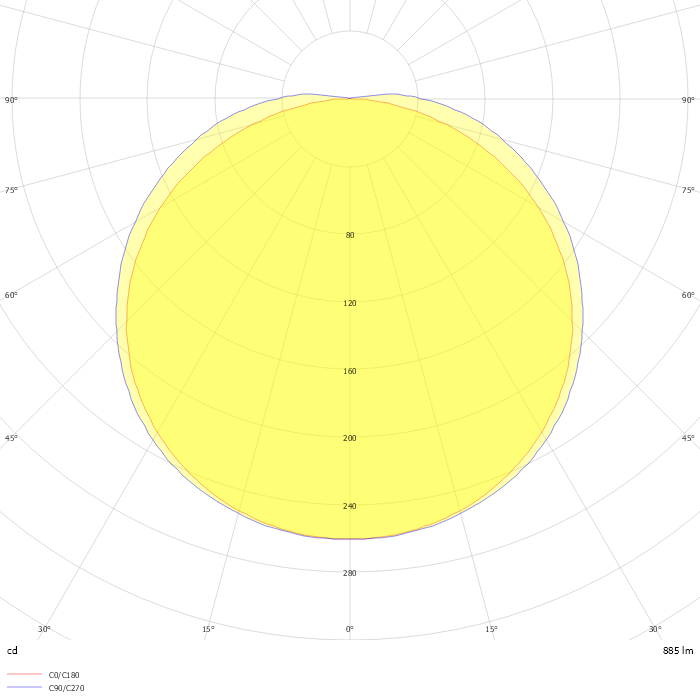

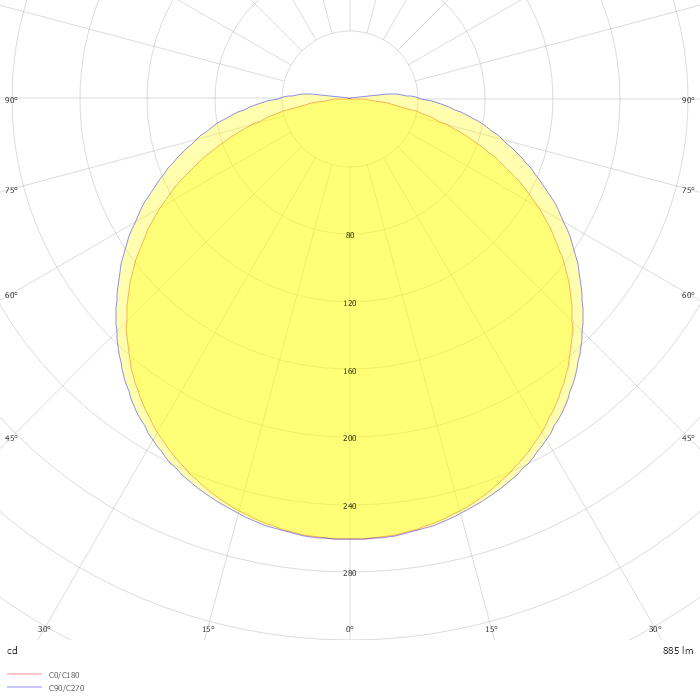

Photometric data

ZIP file
