Product data sheet

NUMANCIA XXL 150000 ASY-WIDE E IP66 22 740

19.4383.6571.22

LUXIONA

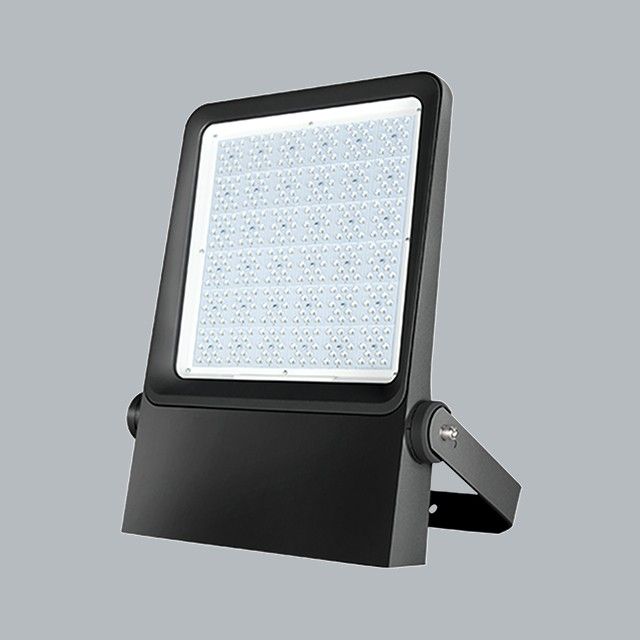

Outdoor luminaire. Assembly: mounted on poles. The body material is aluminum. Colour - RAL 9007 (dark grey). Dimensions: 887 x 662 x 89 mm. Diffuser: PMMA lenses and hardened transparent glass. The efficiency of the optical system is 81,00%. Beam angle: asymmetric light distribution. Light source type: LED. Colour of the light 4000 K. SDCM=3. CRI>70. Lifetime of LED sources: 108000 h L95/B10. Luminaire luminous flux: 125421,3 lm. Power of luminaire: 868,2 W. Luminaire's light efficiency: 144,5 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Circuit load capacity: 1 (B10), 1 (B16), 1 (C10), 1 (C16). Operating temperature range: -40 ÷ 50° C. Protection degree: IP66. Impact resistant: IK09. Protection against electric shock: I. Photobiological risk class (IEC/EN 62471): RG0.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
3 x LED 289.4 W 51602 lm 178 lm/W 4000 K 70
NUMANCIA XXL 150000 ASY-WIDE E IP66 22 740

NUMANCIA XXL 150000 ASY-WIDE E IP66 22 740

Light output 1

3 x LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 887 mm

Width: 662 mm

Height: 89 mm

Adjustability

Tiltable

Design

Colour of housing: Anthracite / graphite, Silver gray

Electric

System power: 868.2 W

Appliance Class: I

Protection

IP: 66

IK: 09

Other operating numbers

Ambient temperature range: -40...50°C

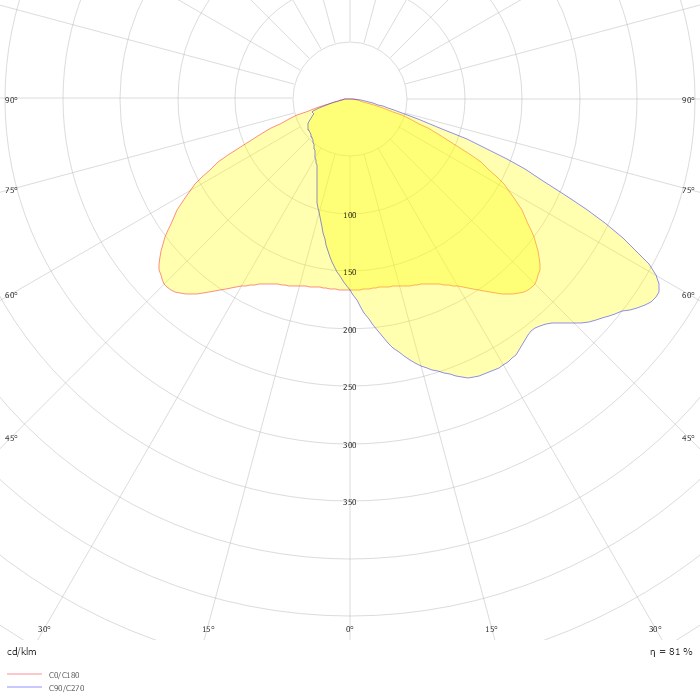

Photometric data

ZIP file
