Product data sheet

Mega BRONCO - Up

5223-A-3-387-XX

Unilamp

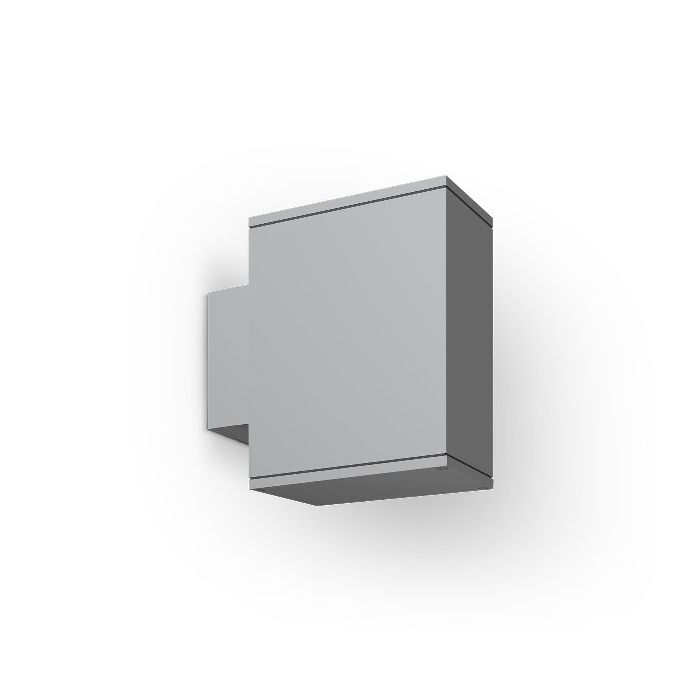

Product image 1: Mega BRONCO - Up
Product image 1: Mega BRONCO - Up

Product image 1: Mega BRONCO - Up



IP
66

IK
07

Mega BRONCO is a high performance wall surface mount luminaire designed for the most challenging façade lighting tasks. The 80CRI 3 SDCM high power LED module generates a uniform light color down to a super narrow 8° beam angle. Colorful façade lighting is accomplished utilizing 4 in 1 RGBW LEDs with built in DMX control gear. Glare controlling accessory is available for single light color and colored light sources.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 27 W 2980 lm 110 lm/W 2700 K 80
Mega BRONCO - Up

Mega BRONCO - Up

Light output 1

1 x LED

Mounting mode

Wall mounted

Shape and measurements

Length: 110 mm

Width: 272 mm

Height: 285 mm

Adjustability

Fixed

Electric

System power: 30 W

Appliance Class: I

Protection

IP: 66

IK: 07

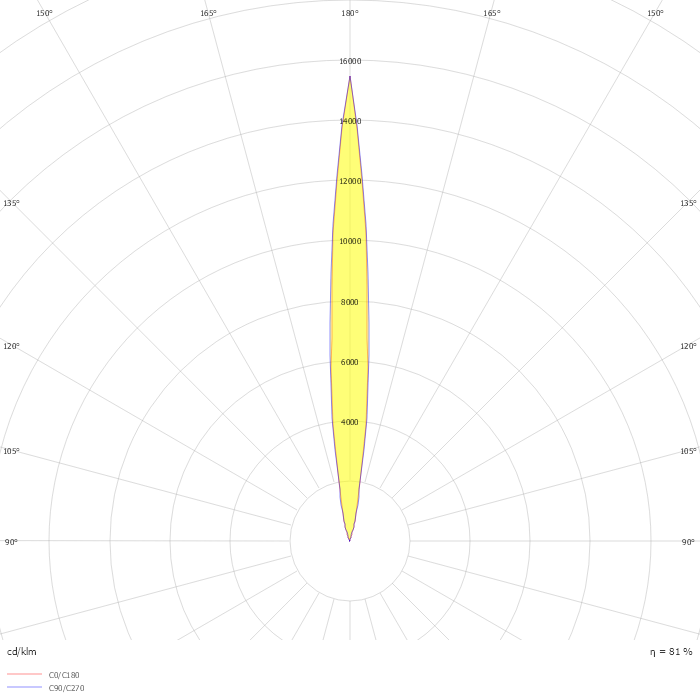

Photometric data

ZIP file

Download file
