Product data sheet

DOVER Downlight CEX9102C G2 24W 4000K 24D（SNW）

31010310901

CDN

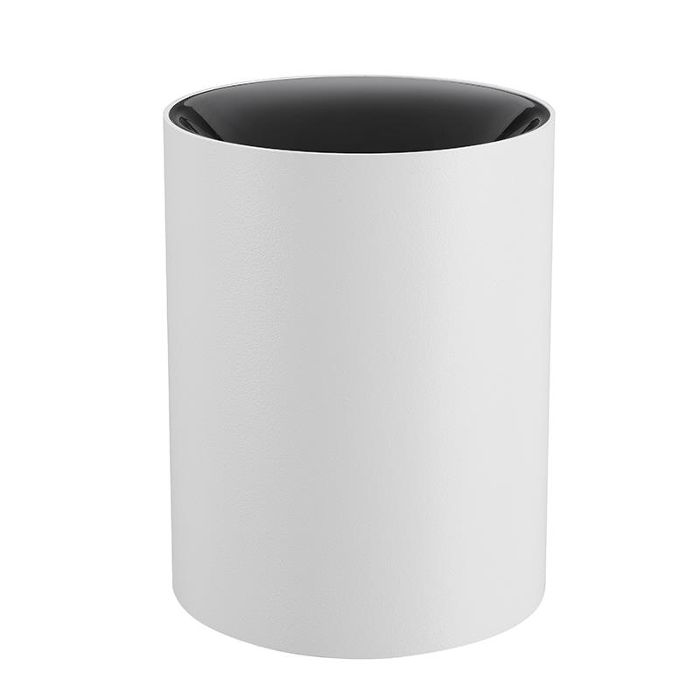

Product image 1: DOVER Downlight CEX9102C G2 24W 4000K 24D（SNW）
Product image 1: DOVER Downlight CEX9102C G2 24W 4000K 24D（SNW）

Product image 1: DOVER Downlight CEX9102C G2 24W 4000K 24D（SNW）



IP
20

Three-point sysmmetrical snap mounting chassis, more stable mounting. No visible screws, looks neater. Suspension rod and track mounting can be customized, more flexible applications. 3 sizes: Φ80mm, Φ95mm, Φ120mm. 7 wattage: 7W, 9W, 12W, 15W, 20W,24W, 35W.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 24.91 W 2339 lm 94 lm/W 4000 K 90
DOVER Downlight CEX9102C G2 24W 4000K 24D（SNW）

DOVER Downlight CEX9102C G2 24W 4000K 24D（SNW）

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Height: 100 mm

Diameter: 92 mm

Adjustability

Fixed

Electric

System power: 24.91 W

Protection

IP: 20

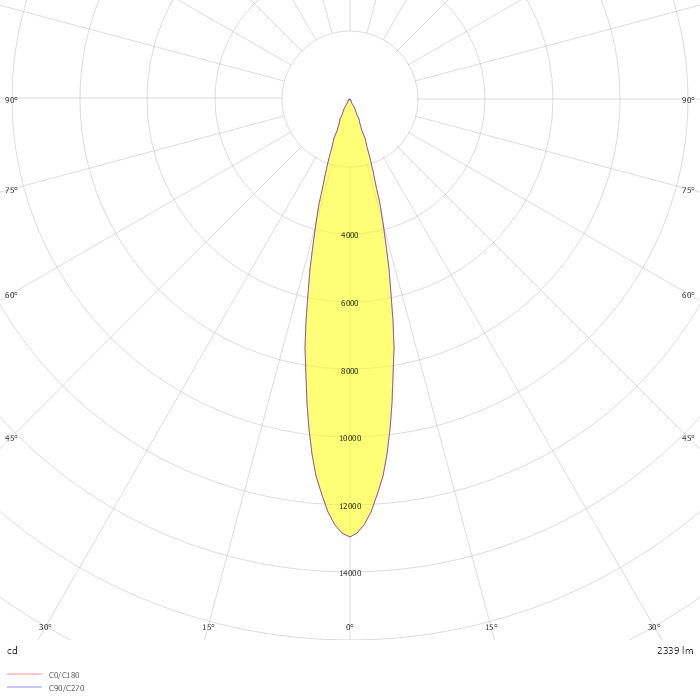

Photometric data

ZIP file

Download file
