Product data sheet

UNI-BRIGHT Aqua LED 7 - housing white - WW

AQ-7W540-01

Proled (MBN GmbH)

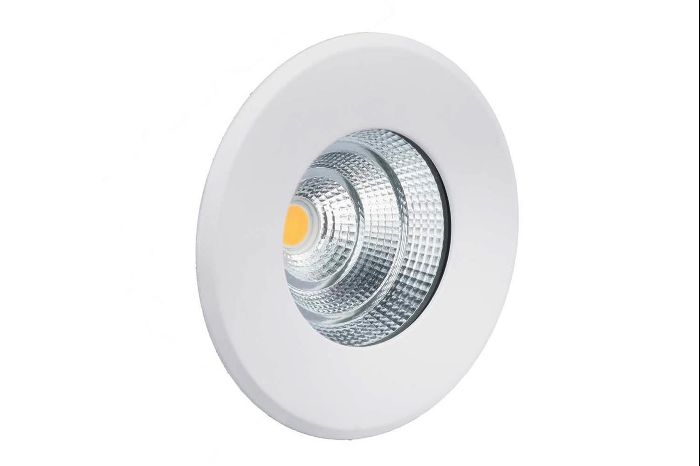

Product image 1: UNI-BRIGHT Aqua LED 7 - housing white - WW
Product image 1: UNI-BRIGHT Aqua LED 7 - housing white - WW

Product image 1: UNI-BRIGHT Aqua LED 7 - housing white - WW



IP
64

Downlight with fixed ring and protection glass, with a modern design. Besides various general applications, he is particulary suitable for use in bathrooms and damp rooms.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 7 W 600 lm 86 lm/W 3000 K 90
UNI-BRIGHT Aqua LED 7 - housing white - WW

UNI-BRIGHT Aqua LED 7 - housing white - WW

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 45 mm

Diameter: 78 mm

Weight: 0.23 kg

Adjustability

Fixed

Electric

System power: 7 W

Appliance Class: II

Protection

IP: 64

Other operating numbers

Ambient temperature range: -10...45°C

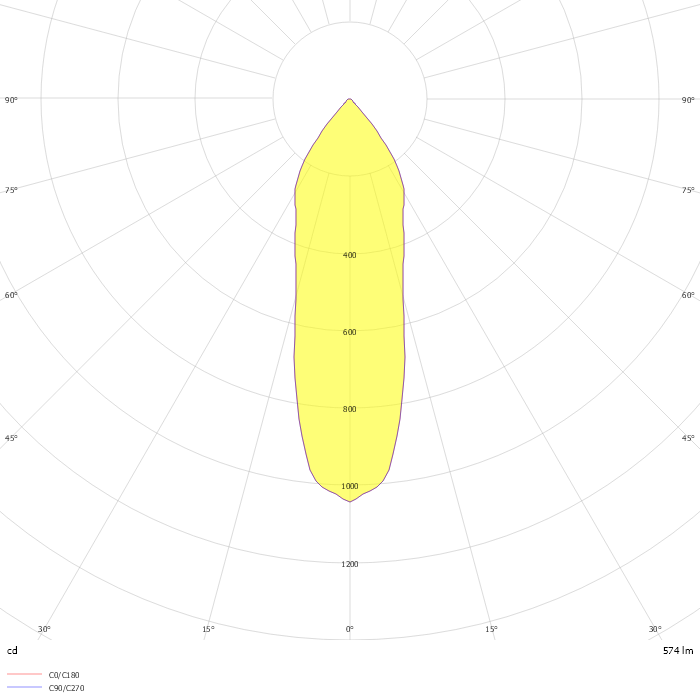

Photometric data

ZIP file

Download file
