Product data sheet

TBLED Low Bay

TBLED-LD1-11-W-UNV-L850-CD1-DOS

Cooper Lighting

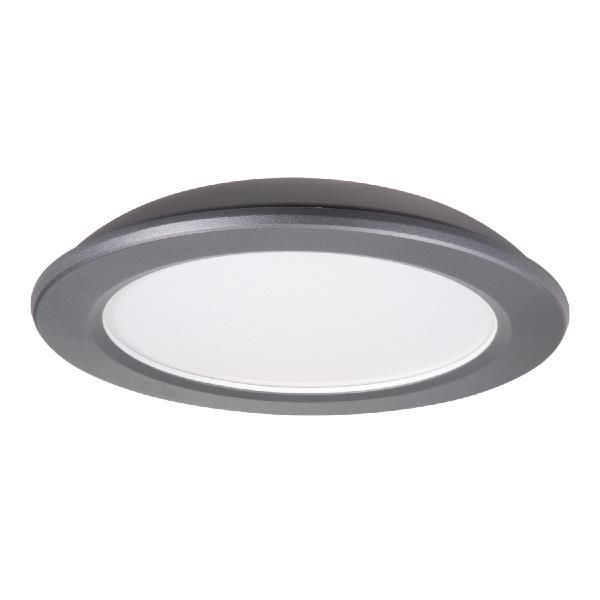

Product image 1: TBLED Low Bay
Product image 1: TBLED Low Bay

Product image 1: TBLED Low Bay



IP
47

One-piece low profile die-cast aluminum housing, WaveStream™ LED technology provides superior performance, Delivers up to 126 lumens per Watt, Standard 0-10V dimming, optional Fifth Light DALI, Lumen maintenance – L85 at 60,000 hours, UL/cUL listed for wet locations, IP66 rated, Rated for -40°C to 40°C ambient applications, Mounting options include surface, hook/plug, wall or pendant mount

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 108 W 10781 lm 100 lm/W 5000 K 80
TBLED Low Bay

TBLED Low Bay

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant

Shape and measurements

Height: 10 mm

Diameter: 343 mm

Adjustability

Fixed

Electric

System power: 108 W

Protection

IP: 47

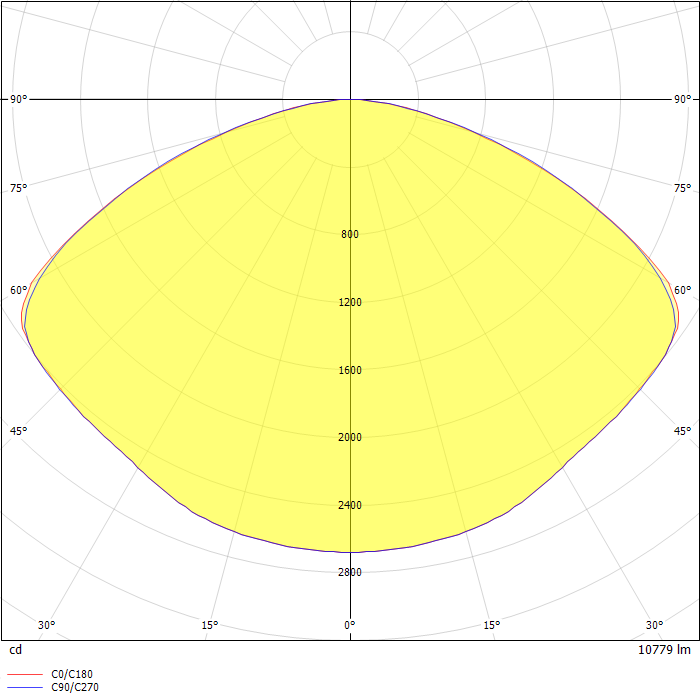

Photometric data

ZIP file

Download file
