Product data sheet

LEDFIT S 45W A/S CL1 L840

96628332

Thorn Lighting

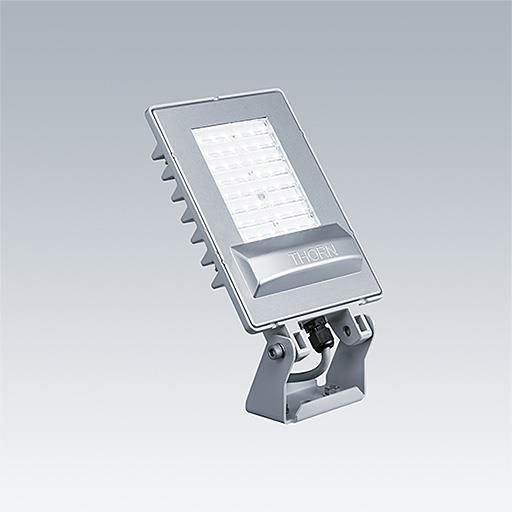

Product image 1: LEDFIT S 45W A/S CL1 L840
Product image 1: LEDFIT S 45W A/S CL1 L840

Product image 1: LEDFIT S 45W A/S CL1 L840



IP
66

IK
07

A simple, ultra lightweight, small LED area floodlight with true asymmetric optic. Integral fixed output control gear. Class I electrical, IP66, Impact strength: IK07. Body: die-cast aluminium painted light grey (RAL 9006). Stirrup: galvanised steel. Visor: polycarbonate with external surface powder coated light grey (RAL 9006). Pre-wired with 0.6m cable. Stirrup can be fixed by one M10 and/or two M8 fixation points, it is reversible allowing different mounting positions. Complete with 4000K LED. Dimensions: 181 x 236 x 48 mm Total power: 45 W Luminaire luminous flux: 4500 lm Luminaire efficacy: 100 lm/W weight: 1.7 kg

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 45 W 4500 lm 100 lm/W 3000 K 80
LEDFIT S 45W A/S CL1 L840

LEDFIT S 45W A/S CL1 L840

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 181 mm

Width: 236 mm

Height: 48 mm

Weight: 1.7 kg

Design

Material impression: Aluminum

Colour of housing: Silver gray

Electric

System power: 45 W

Voltage: 220-240 V AC

Appliance Class: I

Protection

IP: 66

IK: 07

Designation labels: CE, ENEC

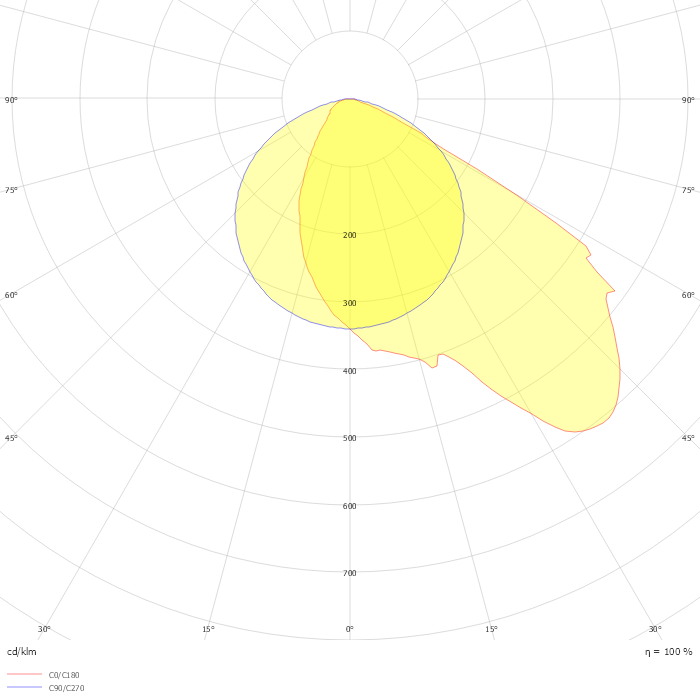

Photometric data

ZIP file

Download file
