Product data sheet

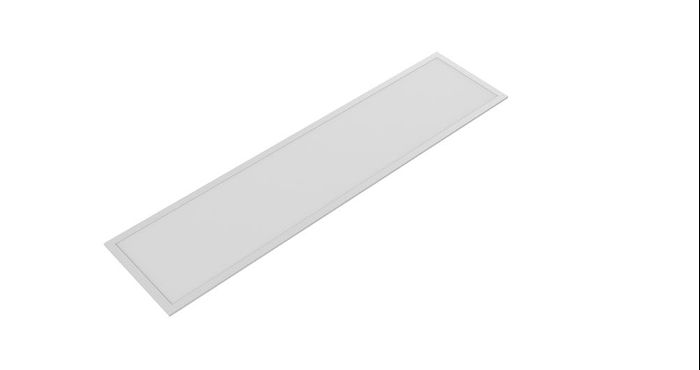

LED ECO PANEL 0312B 36W 840 H

4058075753198

LEDVANCE

Latest backlit LED technology platform. Available in 3 metric sizes: 600x600, 300x1200, 600x1200mm. Standard CCT: 4000K, 6500K & 3000K. High color rendering: CRI > 80. High power factor: PF>0.90. Recess mount with optional plaster ceiling mounting clips and suspension kit. Flicker free driver. EMC suppression circuit in driver. Sturdy SPCC housing. Safety compliance certificates: CB, EU RoHS 2.0. Integrated heat resistance lens for uniform light distribution, reduce product height to only 34mm. Long 50,000hr lifetime reduces maintenance costs. Fast connector between panel and driver for easy installation and maintenance. Seamless aluminum frame elegant design. IP40 protection from diffuser side suitable for different installations.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 36 W 3240 lm 90 lm/W 4000 K 80
LED ECO PANEL 0312B 36W 840 H

LED ECO PANEL 0312B 36W 840 H

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 1153 mm

Width: 253 mm

Height: 10 mm

Adjustability

Fixed

Electric

System power: 36 W

Protection

IP: 20

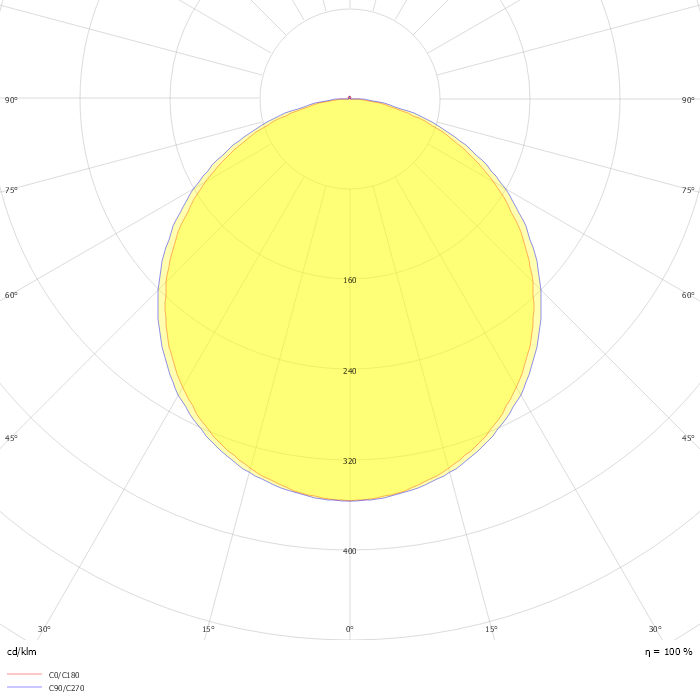

Photometric data

ZIP file
