Product data sheet

Recessed ceiling luminaire Slash 2 HPE (High Performance Ef

2006.3966 - SLASH2 CR1198 LED1940-840 DIR ELOX DALI

Regent

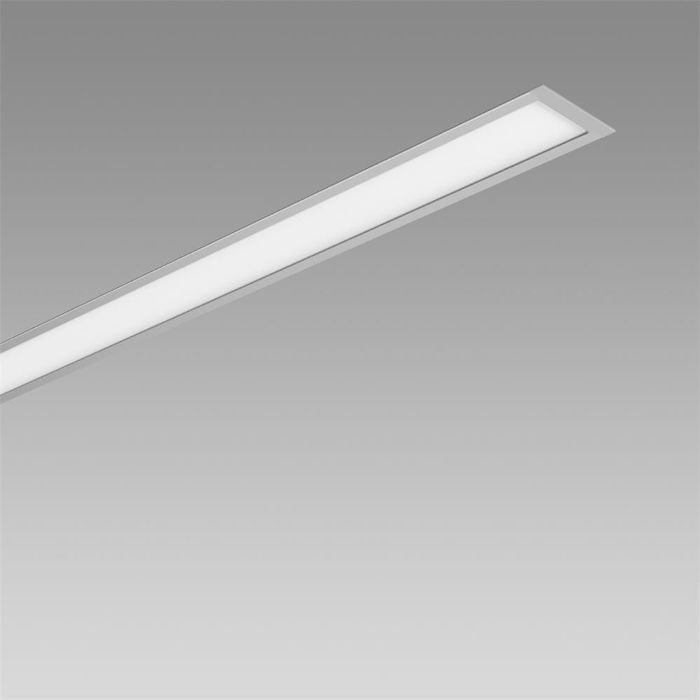

Product image 1: Recessed ceiling luminaire Slash 2 HPE (High Performance Ef
Product image 1: Recessed ceiling luminaire Slash 2 HPE (High Performance Ef

Product image 1: Recessed ceiling luminaire Slash 2 HPE (High Performance Ef



IP
20

IK
08

Recessed ceiling luminaire Slash 2 HPE (High Performance Efficiency), with LED, system power: 19 W, standby power 0.5 W, luminous flux of luminaire 1940 lm, colour rendering index CRI > 80, colour temperature 4000 K, neutral white, colour tolerances SDCM 3, lifetime LED L80 75'000 h, photobiological safety: the luminaire poses no danger (RG0), 230 V, direct light emission, luminaire profile in aluminium natural-colour anodised with ceiling trim, diffuser in polycarbonate (PC), APD (Added Performance Diffuser), OpalLed, 1 integral control gear, DALI, Regent certified MINERGIE®-Modul luminaires S.A.F.E. 2019 (Re-0288), luminaire complies with the strict requirements for Minergie-certified luminaires protection class I, ingress protection IP20, glow wire test 850 °C, impact strength: IK 08 this product contains a light source of energy efficiency class B and EPREL registration number: 1249140 L = 1198 mm, B = 61 mm, EL = 1187 mm, EB = 48 mm, ET = 70 mm

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 20 W 1940 lm 97 lm/W 4000 K 80
Recessed ceiling luminaire Slash 2 HPE (High Performance Ef

Recessed ceiling luminaire Slash 2 HPE (High Performance Ef

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 1198 mm

Width: 61 mm

Height: 70 mm

Weight: 4.386 kg

Adjustability

Fixed

Design

Colour of housing: Silver gray

Electric

System power: 19 W

Appliance Class: I

Protection

IP: 20

IK: 08

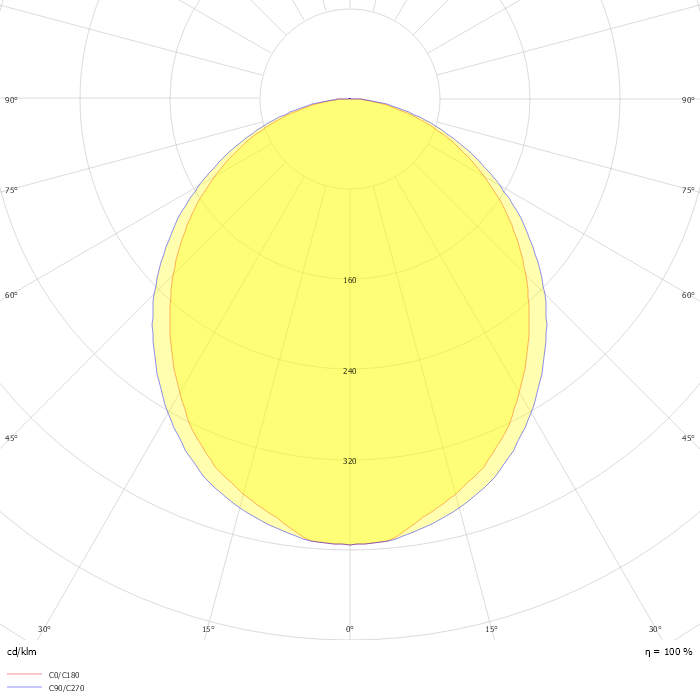

Photometric data

ZIP file
