Product data sheet

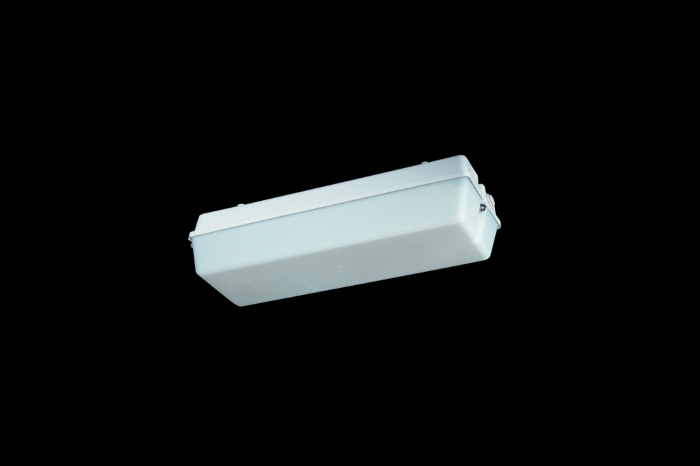

131 LED emergency light fitting

131 L02/3 W MA (13112 0031)

Schuch

LED emergency light fitting, 5 W, 240 lm, 48 lm/W, Self-contained battery, Self test, Emergency operating time 3 h, 240 lm, Class I, IP65, symmetrical wide beam, 6500 K, CRI≥ 80, Ta 0 °C/+30 °C, L80>50000 h (@ Ta max), Diffuser PC opal, Closure Stainless steel (1.4301), Housing Plastic (PC), Colour white, for food areas. Small high impact resistant LED damp-proof emergency light fitting with self-contained battery and automatic monitoring according to EN62034. PC housing, opalescent-white PC diffuser, with multiple hinge at one side, captive screws for closing the light fitting and silicone gasket. Powder-coated reflector with ECG and LED module. NiMH battery with electronic charger and deep discharge protection. Automatic monitoring with optical indication of the test results. Resource-saving and environmentally friendly thanks to interchangeability of components (no disposable light fitting). Length 338,00 mm, Width/Diameter 120,00 mm, Height 90,00 mm, Net weight 1,20 kg.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 5 W 240 lm 48 lm/W 6500 K 80
131 LED emergency light fitting

131 LED emergency light fitting

Light output 1 (integrated, emergency)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 5 W 240 lm 48 lm/W 6500 K 80
131 LED emergency light fitting

131 LED emergency light fitting

Light output 2 (integrated)

LED

Mounting mode

Ceiling mounted, Wall mounted

Shape and measurements

Length: 338 mm

Width: 120 mm

Height: 90 mm

Adjustability

Fixed

Electric

System power: 10 W

Appliance Class: I

Information regarding emergency functions

Supplementary emergency lighting

Emergency sign: N/A

Protection

IP: 65

IK: 08

Designation labels: CE

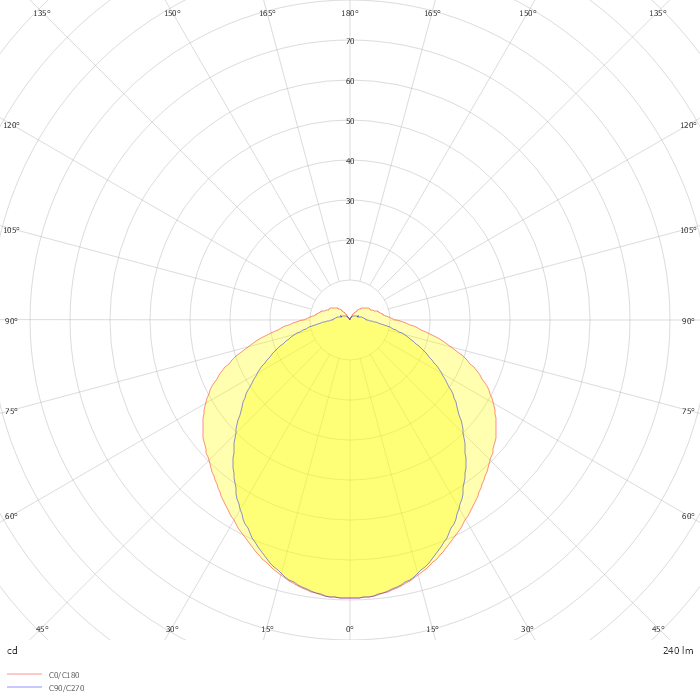

Photometric data

ZIP file
