Product data sheet

Tellus E27 Wall Up 3000K 10W Galv

7701779

Westal

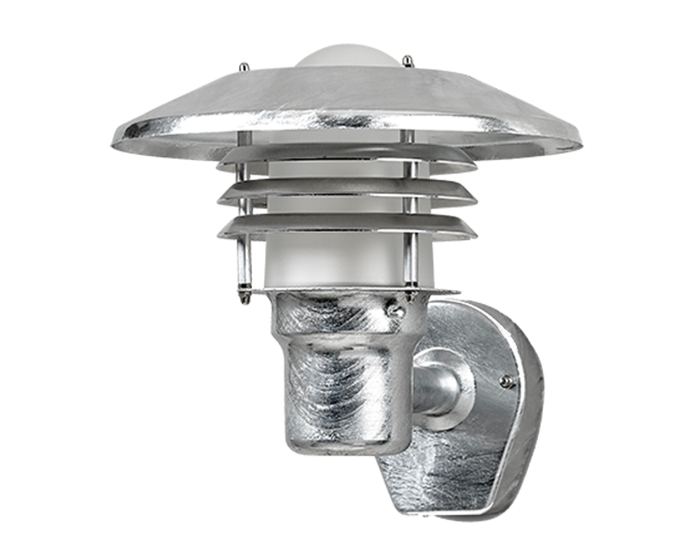

Product image 1: Tellus E27 Wall Up 3000K 10W Galv
Product image 1: Tellus E27 Wall Up 3000K 10W Galv

Product image 1: Tellus E27 Wall Up 3000K 10W Galv



IP
44

Wall luminaire E27 socket with radiant light image. Chromated and powder coated, blinded with ring glare protection. The back piece has two inputs and outputs and a quick-connect terminal block. Suitable for use in both private and public environments.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 10 W 625 lm 62 lm/W 3000 K 80
Tellus E27 Wall Up 3000K 10W Galv

Tellus E27 Wall Up 3000K 10W Galv

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Length: 260 mm

Width: 339 mm

Height: 260 mm

Adjustability

Fixed

Electric

System power: 10 W

Appliance Class: I

Protection

IP: 44

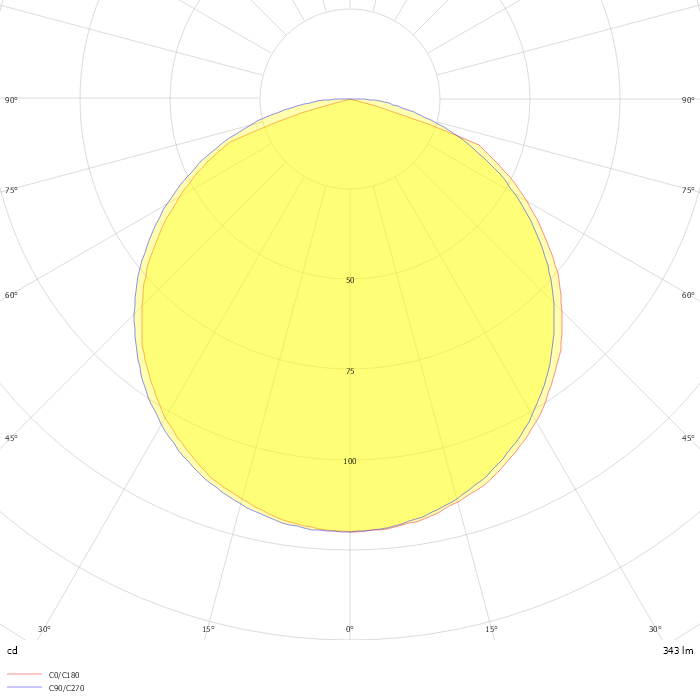

Photometric data

ZIP file

Download file
