Product data sheet

LUGTRACK EVO LED 1435 4100lm 4000K rotationally-symmetric white

080151.5L02.11

LUG

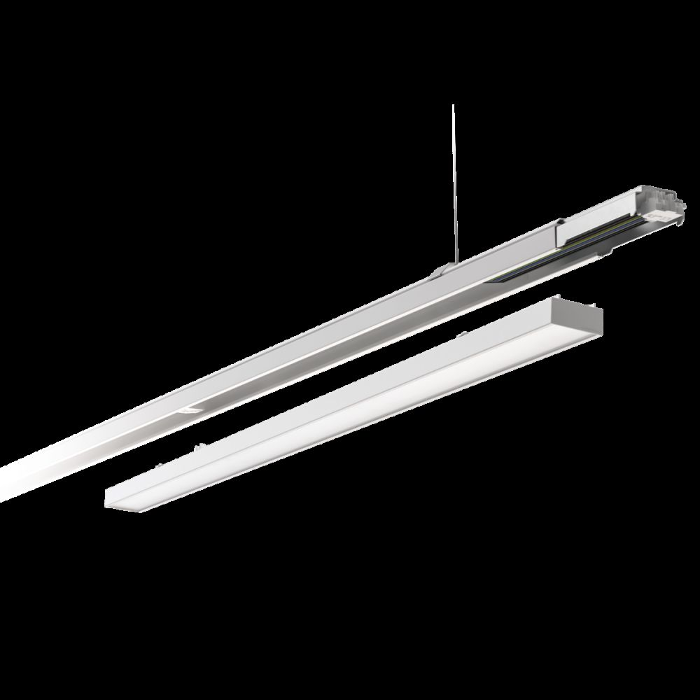

Product image 1: LUGTRACK EVO LED 1435 4100lm 4000K rotationally-symmetric white
Product image 1: LUGTRACK EVO LED 1435 4100lm 4000K rotationally-symmetric white

Product image 1: LUGTRACK EVO LED 1435 4100lm 4000K rotationally-symmetric white



IP
20

IK
04

Modern LED luminaire for quick assembly; the construction of the luminaire enables quick and easy connection into long lighting systems, with easily interchangeable lighting modules. Mounting: suspended, surface mounted Body: coated steel sheet Power: 220-240V 50/60Hz Lifetime (L80B10): 100 000 h Additional information: support rail made of sheet metal coated in RAL 9003 mat; available with 5- and 7-pole through wiring; grill Other remarks: to power each light string, a STARTER KIT needs to be ordered; depending on the type of assembly, select and order the appropriate mounting bracket (accessories) Warranty: 5 years Application: supermarkets, warehouses, logistics centers, warehouses, production halls, pathways Type of optics: diffuser - opal plexiglass (PLX)

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 31 W 4100 lm 132 lm/W 4000 K 80
LUGTRACK EVO LED 1435 4100lm 4000K rotationally-symmetric white

LUGTRACK EVO LED 1435 4100lm 4000K rotationally-symmetric white

Light output 1 (integrated)

LED

Mounting mode

Pendant, Ceiling mounted

Shape and measurements

Length: 1435 mm

Width: 75 mm

Height: 33 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 31 W

Appliance Class: I

Protection

IP: 20

IK: 04

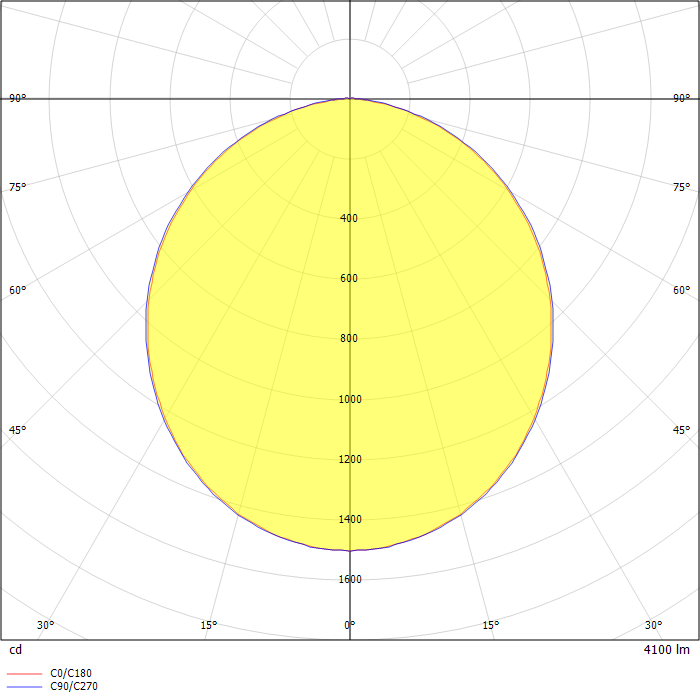

Photometric data

ZIP file
