Product data sheet

High-bay luminaire Arny 2 with 6 LED modules (type L) 300W

2008.3873 - ARNY2 1099x365 LED48000-865 WB WH PC BP DALI

Regent

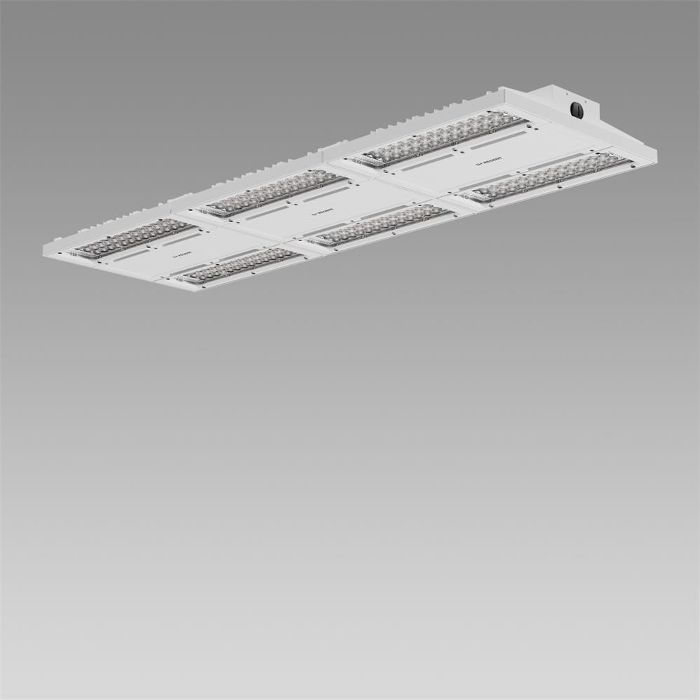

Product image 1: High-bay luminaire Arny 2 with 6 LED modules (type L) 300W
Product image 1: High-bay luminaire Arny 2 with 6 LED modules (type L) 300W

Product image 1: High-bay luminaire Arny 2 with 6 LED modules (type L) 300W



IP
66

IK
10

High-bay luminaire Arny 2 with 6 LED modules (type L), for surface, wall, pendant mounting and mounting rail, with LED, system power: 300 W, standby power 0.5 W, luminous flux of luminaire 48000 lm, colour rendering index CRI > 80, colour temperature 6500 K, cool daylight white, colour tolerances SDCM 3, lifetime LED L80 100'000 h, photobiological safety: the luminaire poses no danger (RG0), 230 V, direct light emission, wide beam, 3 integral control gears, DALI2, housing in die-cast aluminium, white, RAL 9016, cover in PC, Mounting accessories to be ordered separately, connection cable (H07RN-F) 2m pre-assembled, suitable mounting accessories for ball-proof mounting to be ordered separately protection class I, ingress protection IP66, impact strength: IK 10, glow wire test 850 °C, protected against ball shots with accessories, for ambient temperatures -20 to +55 °C, this product contains a light source of energy efficiency class B and EPREL registration number: 1451565 L = 1099 mm, B = 365 mm, H = 63 mm

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 100.3 W 16000 lm 160 lm/W 6500 K 80
High-bay luminaire Arny 2 with 6 LED modules (type L) 300W

High-bay luminaire Arny 2 with 6 LED modules (type L) 300W

Light output 1

1 x LED

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 100.3 W 16000 lm 160 lm/W 6500 K 80
High-bay luminaire Arny 2 with 6 LED modules (type L) 300W

High-bay luminaire Arny 2 with 6 LED modules (type L) 300W

Light output 2

1 x LED

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 100.3 W 16000 lm 160 lm/W 6500 K 80
High-bay luminaire Arny 2 with 6 LED modules (type L) 300W

High-bay luminaire Arny 2 with 6 LED modules (type L) 300W

Light output 3

1 x LED

Mounting mode

Pendant

Shape and measurements

Length: 1099 mm

Width: 365 mm

Height: 63 mm

Weight: 15.728 kg

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 300 W

Appliance Class: I

Protection

IP: 66

IK: 10

Resistant to impact of balls

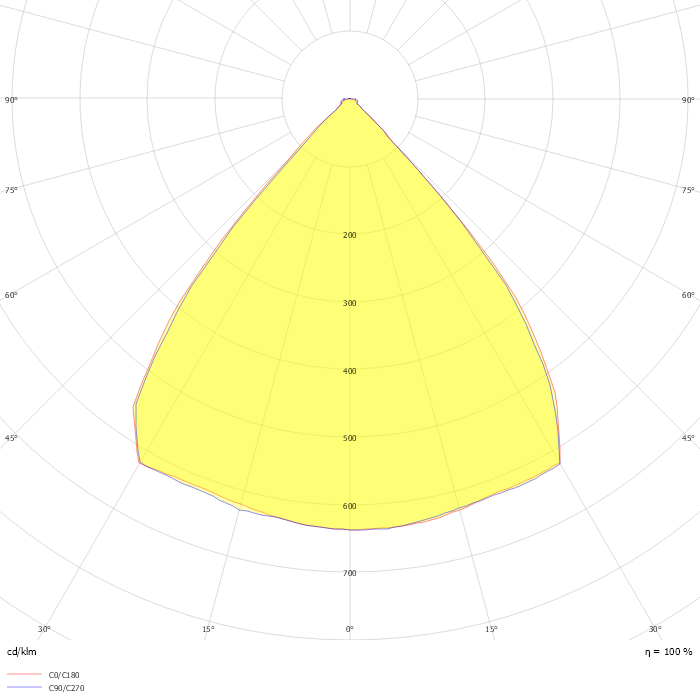

Photometric data

ZIP file
