Product data sheet

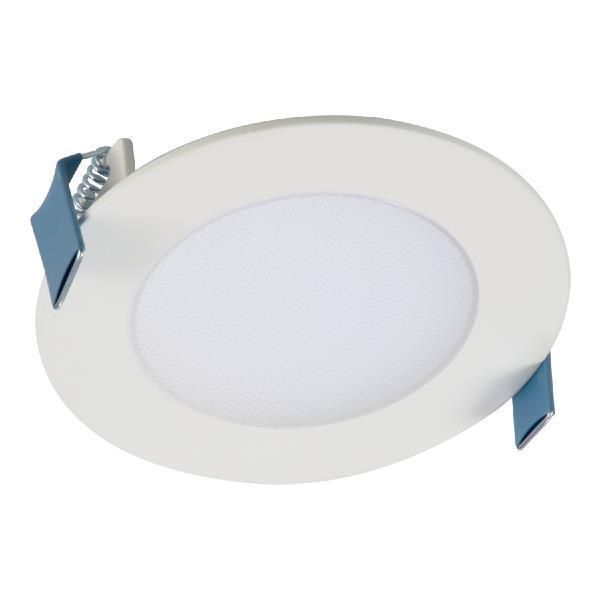

HLB4 LED 4" MicroEdge™ Direct Mount Downlight

HLB406930

Cooper Lighting

Ultra-thin round lens downlight with remote driver/junction box, Install into drywall/suspended ceilings (no J-box or housing required), Install from below the ceiling in as little as a 1-1/2" plenum height, 5 selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K CCT, CRI: 90; L70 at 50,000 hours (70% lumen maintenance at 50,000 hours), Wet location listed for showers and protected ceilings, For Insulated Ceiling (IC) rated and Non-IC rated applications, 120V; Phase dimming down to 5%; Lumens: up to 750, AIR-TITE™ reduces airflow between unconditioned and conditioned spaces, ENERGY STAR™ certified; 5-year warranty

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 12 W 723 lm 60 lm/W 3000 K 90
HLB4 LED 4" MicroEdge™ Direct Mount Downlight

HLB4 LED 4" MicroEdge™ Direct Mount Downlight

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 10 mm

Diameter: 102 mm

Adjustability

Fixed

Electric

System power: 12 W

Protection

IP: 47

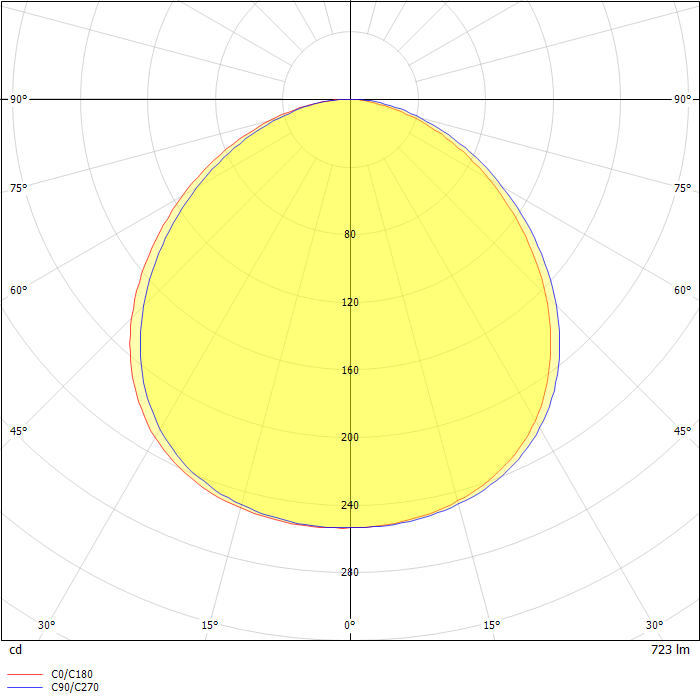

Photometric data

ZIP file
