Product data sheet

PANOS EVO R150H 10W LED840 SM WH

60815836

Zumtobel

LED ceiling-recessed luminaire (pre-assembled luminaire); "stableWhite" LED luminaire, symmetric wide-beam light distribution with maximum luminaire efficiency and optimum photometric properties; lamp(s): 10 W LED840; Colour rendering Ra > 80, colour temperature 4000 K (neutral white); Chromaticity tolerance (initial MacAdam): 3; Luminaire luminous flux: 900 lm, Luminaire efficacy: 90 lm/W; service life: 50000h at 85% luminous flux; includes separate control unit ; high-quality reflector unit fixed to modular LED lighting chamber by twist-and-lock mechanism; high-efficiency LED lighting chamber is integrated in optimised, passive thermal management system of diecast aluminium; reflector: smooth, matt aluminized finish; reflector/trim made of high-quality, UV-resistant polycarbonate; cover ring white; mounting ring of Glass fibre-reinforced polycarbonate (PC), grey; luminaire unit can be fitted quickly without tools using twist-and-lock mechanism; IP44_IP20; luminaire wired with halogen-free leads; power connection: 3-pole connector terminal, loop-in/loop-out possible; mains voltage: 220-240V / 0/50/60Hz, for use with 220V DC central battery; tool-free quick installation using antislip spring clips in ceilings of thickness 1-40mm; ceiling cutout: 150mm, recess depth: 113mm; weight: 0.82 kg; Note: EN12464-compliant with UGR<19 (aluminized reflector type) for office applications

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 10 W 1200 lm 90 lm/W 3000 K 80
PANOS EVO R150H 10W LED840 SM WH

PANOS EVO R150H 10W LED840 SM WH

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 106 mm

Diameter: 168 mm

Weight: 0.8 kg

Design

Material impression: Aluminum

Colour of housing: White

Electric

System power: 10 W

Voltage: 220-240 V AC

Appliance Class: II

Protection

IP: 20

Designation labels: CE, ENEC

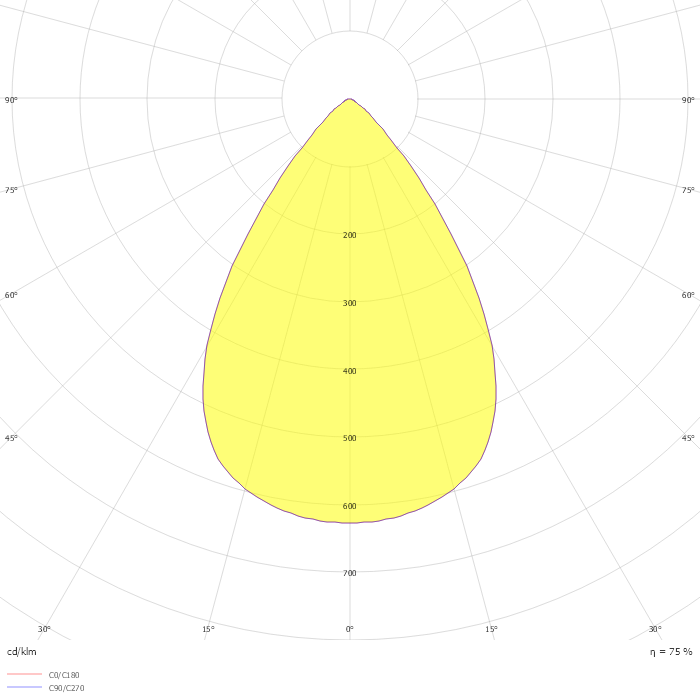

Photometric data
