absolute control over emitted light thanks to patented nano-optics; variable suspension spacing ranging from 970 - 1230 mm; enable the light to be installed onto suspension fittings left over from previous lighting; basic beam angle: wide beam (WB); optimal mounting height: 2.5 to 4 m; ON/OFF electronic driver (AC, DC on demand); Body: dark grey ABS (high chemical resistance, UV stability, RAL 7001); Diffuser: clear AC with nano-optics (high mechanical resistance, UV stability); Reflector: steel sheet, white (RAL 9003); Clips: polyamide + 15 % fibreglass; Sealing: polyurethane (PUR), foam-filled base groove; Connection: screwless five-pole terminal block, 5-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand); Power: 33,3 W; Luminaire flux: 4920 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK06; Ambient temperature: -25|45 °C; Weight: 2,2 kg;
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 33.3 W | 5590 lm | 168 lm/W | 4000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 1455 mm
Width: 98 mm
Height: 84 mm
Adjustability
Fixed
Design
Material impression: Plastic
Colour of housing: Silver gray, White
Designer: TREVOS
Glare protection
Glare protection: UGR < 19
Electric
System power: 33.3 W
Ballast: ECG
Appliance Class: I
Protection
IP: 66
IK: 06
Designation labels: CE, ENEC
Other operating numbers
Ambient temperature range: -25...45°C

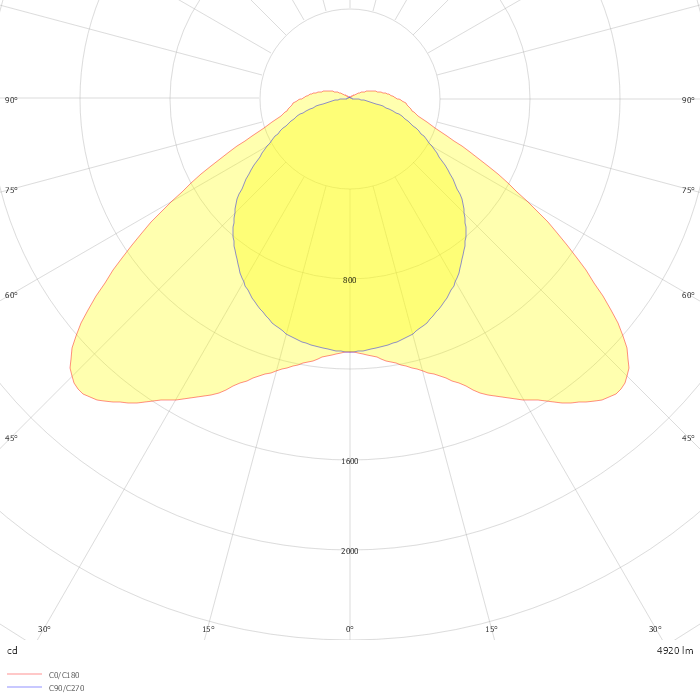

Photometric data
ZIP file
