Product data sheet

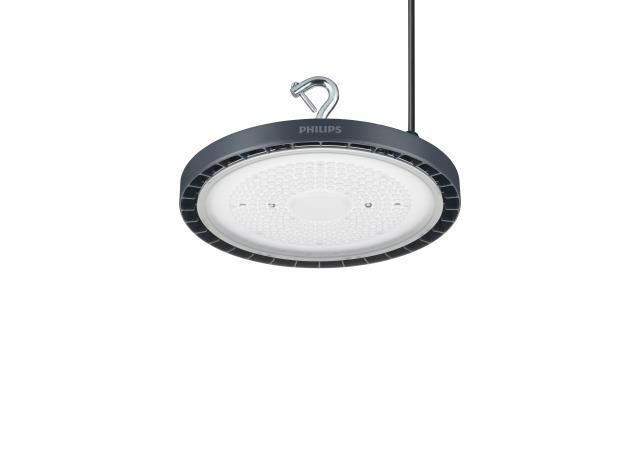

CoreLine Highbay Gen5 BY120P G5 LED150S/840 NB PSU

9243999

Philips

CoreLine highbay gen5: Easy installation. Excellent illumination. CoreLine Highbay Gen5 delivers on the CoreLine promise of innovative, easy-to-use and high-quality luminaires. A reliable, highly-efficient luminaire with a very long-lifetime, it delivers great energy savings and requires less maintenance. At the same time, CoreLine Highbay is very easy to handle. The luminaire can be installed on your existing grid and the electrical connection is a straightforward task, with no need to open the luminaire and an external IP65 connector. With a choice of two beam angles: narrow and wide beam, you can adjust your lighting plan to suit your exact needs. This range also includes Interact Ready luminaires with integrated wireless communications and integrated movement and daylight sensors. So CoreLine Highbay Gen5 is ready to be used with any Interact connected lighting system.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 95 W 15000 lm 158 lm/W 4000 K 80
CoreLine Highbay Gen5 BY120P G5 LED150S/840 NB PSU

CoreLine Highbay Gen5 BY120P G5 LED150S/840 NB PSU

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Height: 100 mm

Diameter: 290 mm

Electric

System power: 95 W

Protection

IP: 65

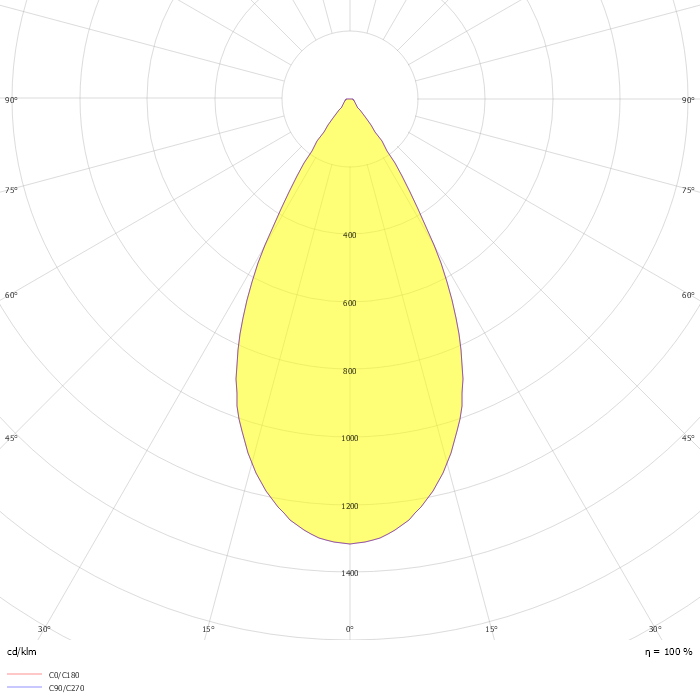

Photometric data

ZIP file
