Product data sheet

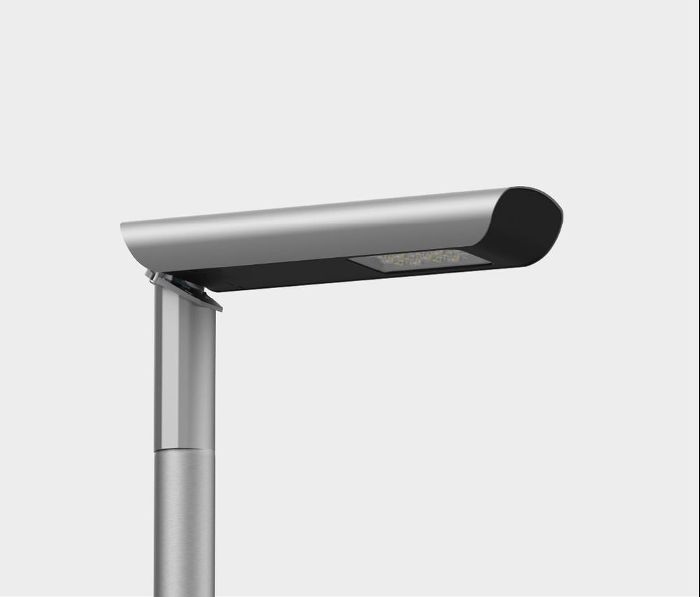

CUDDLE MINI LED REG 48 5000K DW

222833/6/DW/10kV

ROSA

One of the most frequently chosen luminaires. The basic version of the product from the CUDDLE MINI LED series. In a compact size, made of aluminium - in the standard version the body is anodised in inox and black. Installed on an extension arm with a ⌀ 60 x 100 mm ending. Most often, it illuminates city and residential streets, pedestrian routes and car parks. It has a protection class of IP 66 for the optical part and the power input system. The luminaire is equipped with PMMA lenses, an interchangeable LED module and a tempered glass diffuser. The expected service life of the product is L90B10 - 100,000. h. The input voltage frequency is 50/60Hz. Power factor ≥0.95. The fixture has 16 LEDs. It is possible to connect the luminaire to an external control system via the DALI interface (optional support for an analogue 1-10V signal).

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 54 W 9050 lm 168 lm/W 5000 K 70
CUDDLE MINI LED REG 48 5000K DW

CUDDLE MINI LED REG 48 5000K DW

Light output 1

1 x LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 720 mm

Width: 206 mm

Height: 86 mm

Adjustability

Free

Electric

System power: 54 W

Protection

IP: 66

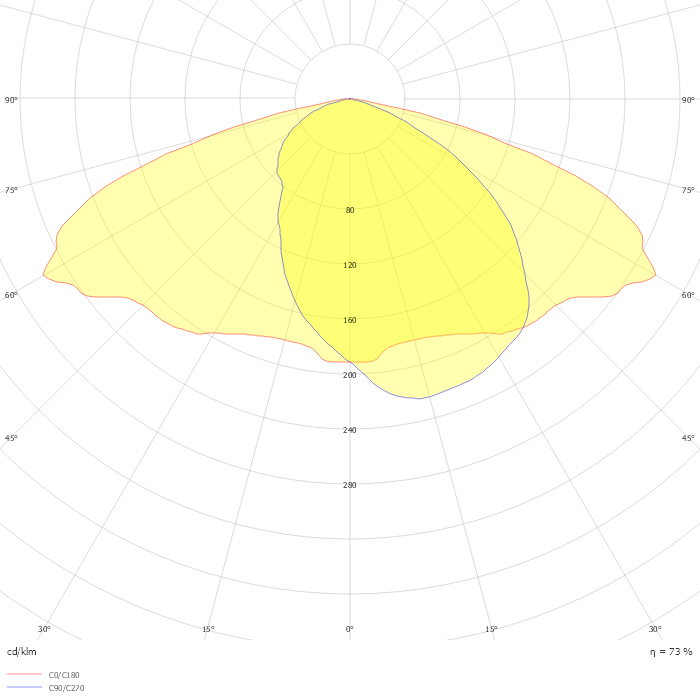

Photometric data

ZIP file
