Product data sheet

SATIN2 MRE L1250 48L35 12° RGBW KIT

96267305

Thorn Lighting

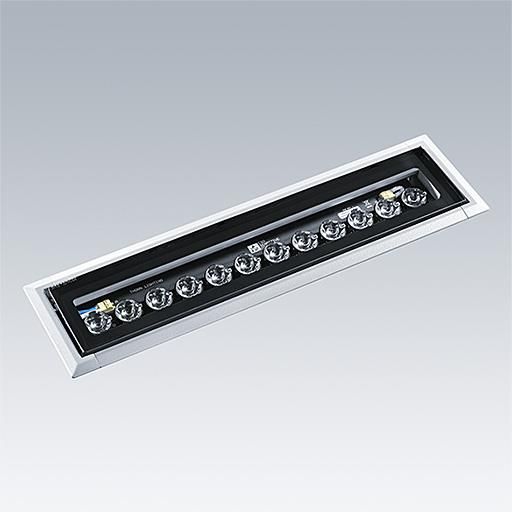

Product image 1: SATIN2 MRE L1250 48L35 12° RGBW KIT
Product image 1: SATIN2 MRE L1250 48L35 12° RGBW KIT

Product image 1: SATIN2 MRE L1250 48L35 12° RGBW KIT



IP
68

IK
10

A discreet floor recessed linear floodlight for façade illumination applications. 48 LEDs driven at 350mA with 12° distribution. Electronic, fixed output control gear. Body: extruded aluminium (EN AW-6060 T6) painted textured silver grey. Sides: die-cast aluminium painted textured silver grey. Enclosure: tempered glass 10mm thick. Class II electrical, IP68, IK08. Pre-wired with 1m of 5x1mm² Profiplast CSA cable at one end, for connection to remote gear box. Complete with RGBW LEDs Dimensions: 1254 x 96 x 112 mm Total power: 56 W Weight: 7.1 kg

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 56 W 2820 lm 50 lm/W 3000 K 99
SATIN2 MRE L1250 48L35 12° RGBW KIT

SATIN2 MRE L1250 48L35 12° RGBW KIT

Light output 1 (integrated)

LED

Mounting mode

Floor recessed

Shape and measurements

Length: 1254 mm

Width: 96 mm

Height: 112 mm

Weight: 7.1 kg

Design

Material impression: Aluminum

Colour of housing: Silver gray

Electric

System power: 56 W

Voltage: 230 V AC

Appliance Class: II

Protection

IP: 68

IK: 10

Designation labels: CE

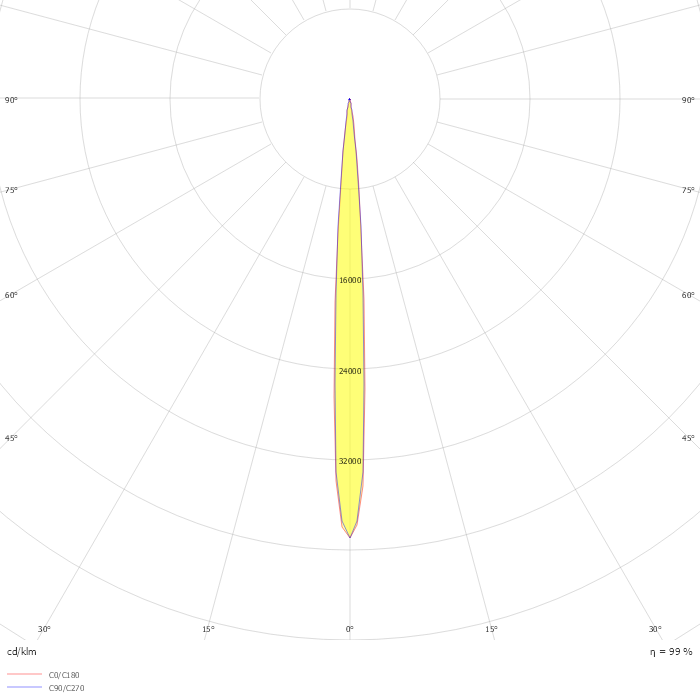

Photometric data

ZIP file

Download file
