Product data sheet

3000K CRI 90 3W CLD White

22168510-00

Disano

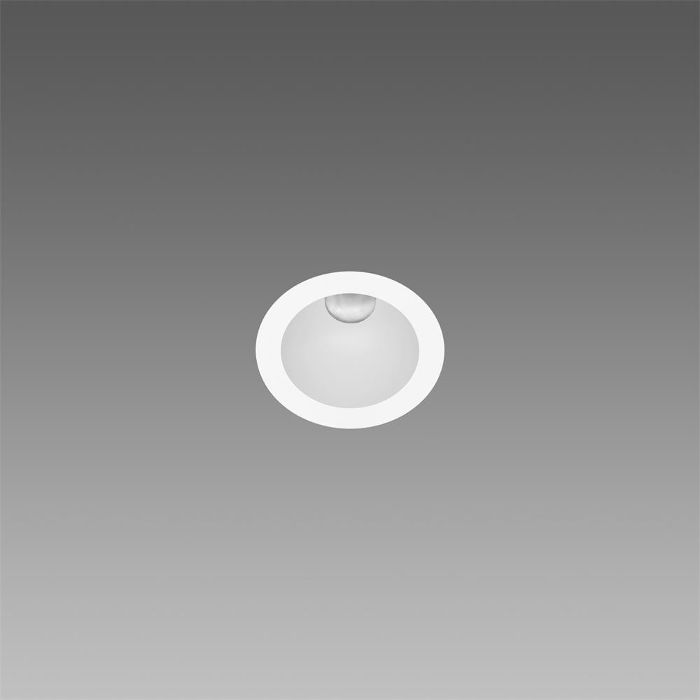

Product image 1: 3000K CRI 90 3W CLD White
Product image 1: 3000K CRI 90 3W CLD White

Product image 1: 3000K CRI 90 3W CLD White



IP
65

IK
04

Housing: in die-cast aluminum complete with finishing ring Diffuser: in polycarbonate Heat Sink: built-in. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Equipment: galvanised steel wire springs for false ceiling mounting.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 3 W 180 lm 60 lm/W 3000 K 90
3000K CRI 90 3W CLD White

3000K CRI 90 3W CLD White

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 40 mm

Diameter: 35 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 3 W

Appliance Class: II

Protection

IP: 65

IK: 04

Designation labels: CE

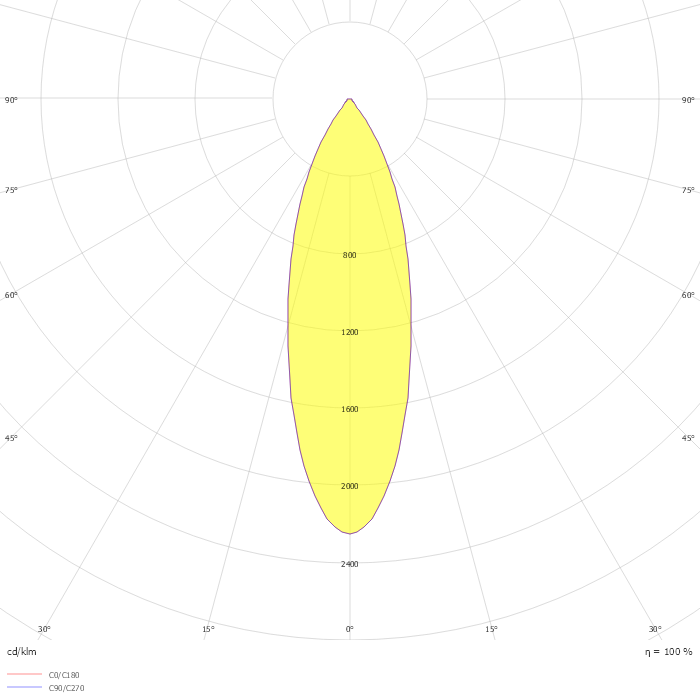

Photometric data

ZIP file

Download file
