Product data sheet

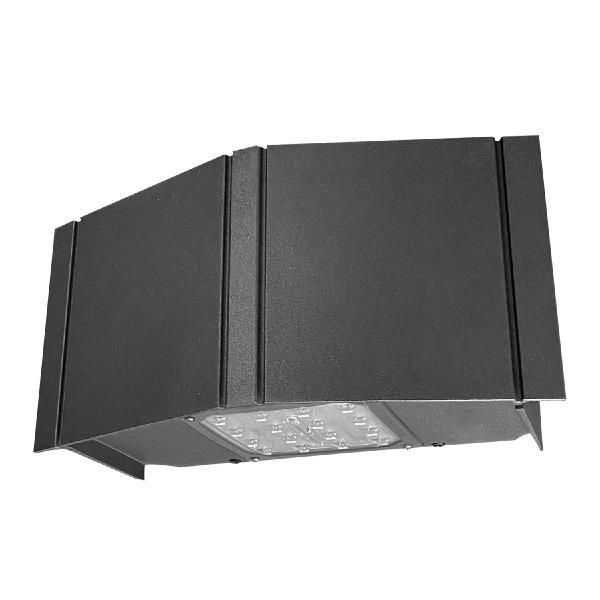

ENT Entri Triangle Reveals LED

ENT-SA1B-750-U-T4FT

Cooper Lighting

One-piece, die-cast aluminum housing and door, Flush mounted die-cast tool-less latch for ease of maintenance, Choice of eleven LED optical distributions, Fits 4” j-box and secured via two concealed stainless steel fasteners, Offered with optional uplight and colored or clear luminous window, Optional die-cast aluminum adapter box for egress and thru-way wiring, Proprietary circuit module withstands 10kV transient line surge (LED), Offers 9 specifiable CRI/CCT options within 5-step MacAdam ellipse, LED fixture features a five-year warranty

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 25.4 W 3282 lm 129 lm/W 5000 K 70
ENT Entri Triangle Reveals LED

ENT Entri Triangle Reveals LED

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Height: 10 mm

Diameter: 152 mm

Adjustability

Fixed

Electric

System power: 25.4 W

Protection

IP: 47

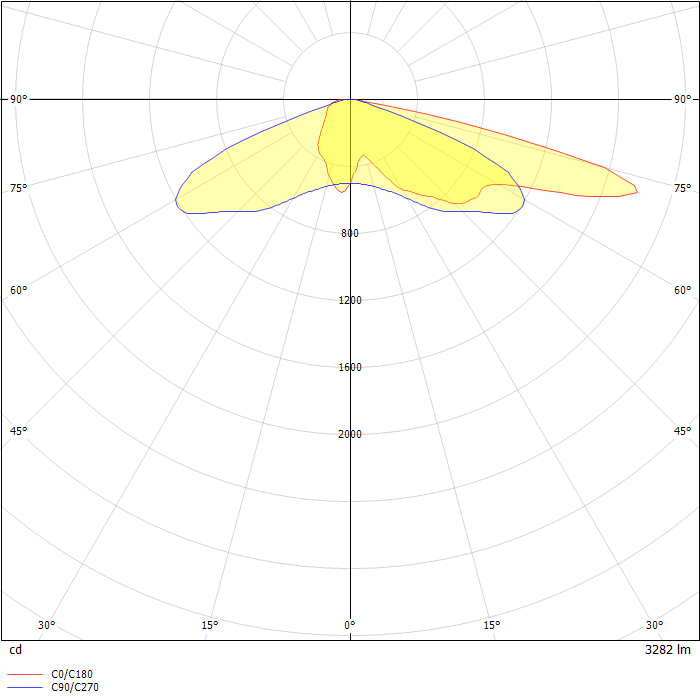

Photometric data

ZIP file
