Product data sheet

i10-2200 G2 20000 840 NB

Glamox

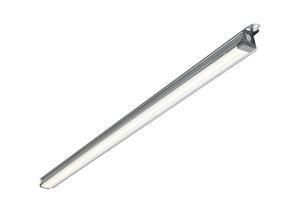

Product image 1: i10-2200 G2 20000 840 NB
Product image 1: i10-2200 G2 20000 840 NB

Product image 1: i10-2200 G2 20000 840 NB



IP
23

Light source: LED Lumen out: 19711 CRI: 80 Colour temperature: 4000 Total effect: 116 Lumen per watt: 170 Optic: NB Driver: DALI;HF;WZ Main body material: Aluzink IP class: 23

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 116 W 19711 lm 170 lm/W 4000 K 80
i10-2200 G2 20000 840 NB

i10-2200 G2 20000 840 NB

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 2178 mm

Width: 100 mm

Height: 70 mm

Adjustability

Fixed

Electric

System power: 116 W

Protection

IP: 23

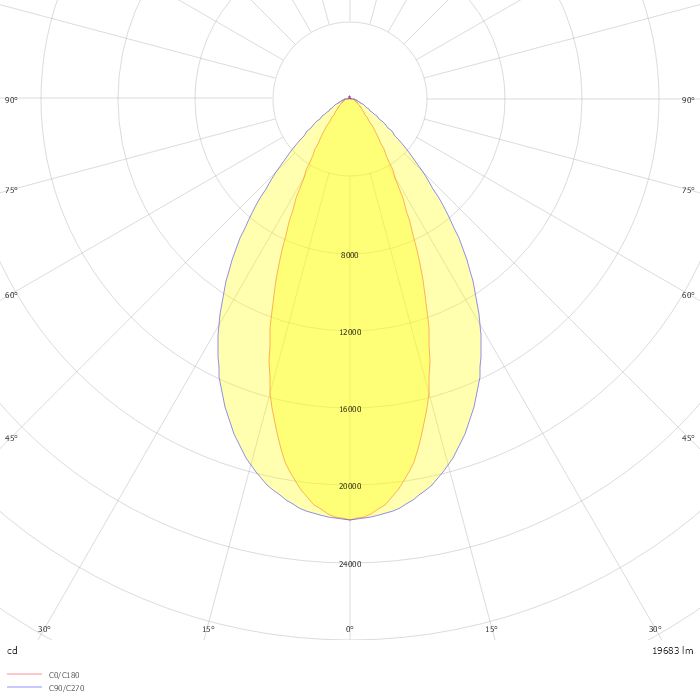

Photometric data

ZIP file

Download file
