Product data sheet

Atlantic LED O 1-8h/D CGLine+ H (set to 3 h operation)

40071354878

Eaton Emergency Lighting

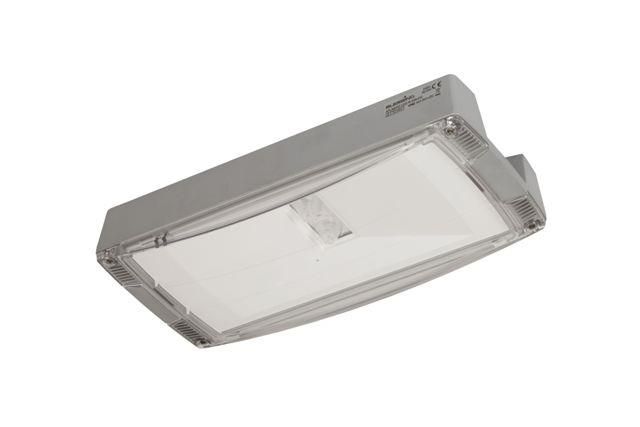

Product image 1: Atlantic LED O 1-8h/D CGLine+ H (set to 3 h operation)
Product image 1: Atlantic LED O 1-8h/D CGLine+ H (set to 3 h operation)

Product image 1: Atlantic LED O 1-8h/D CGLine+ H (set to 3 h operation)



IP
65

IK
10

• LED self-contained luminaire with high protection class (IP65) for indoor and outdoor use • With automatic test for reduced inspection effort • Universal use for maintained and non-maintained operation and for 1 h, 3 h or 8 h operation • For autonomous installation or connection to the CGLine monitoring system • Robust construction from aluminium diecast and high impact resistant cover made of polycarbonate • Suitable for use in food processing industry acc. IFS (Atlantic LED R and Atlantic LED O) • Environmentally-friendly due to modern lithium ion technology • Optional with self-regulating battery heater for use at low temperature up to -20°C • Low operating costs via low connected load • Minimum maintenance effort via use of LEDs with high service life (50,000 hours)) • Available with special optics for escape route illumination or wide area illumination • High spacing by double optics technology and highly efficient HighPower LEDs • Simple fault analysis and status display via bicolor LED and testing button • 1 minute switch-back delay after mains return (according to DIN VDE 0100-718) • Blocking function prevents unintended discharge during idle operating times (only with CG controller or CGLine WEB-Interface)

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
2 x LED 1.5 W 109 lm 23 lm/W 6500 K 70
Atlantic LED O 1-8h/D CGLine+ H (set to 3 h operation)

Atlantic LED O 1-8h/D CGLine+ H (set to 3 h operation)

Light output 1 (emergency)

2 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 303 mm

Width: 136 mm

Height: 62 mm

Adjustability

Fixed

Electric

System power: 9.3 W

Suitable for feed-through wiring

Appliance Class: I

Information regarding emergency functions

Emergency lighting only

Emergency power supply: Single battery 1 h, Single battery 3 h, Single battery 8 h

Emergency sign: N/A

Protection

IP: 65

IK: 10

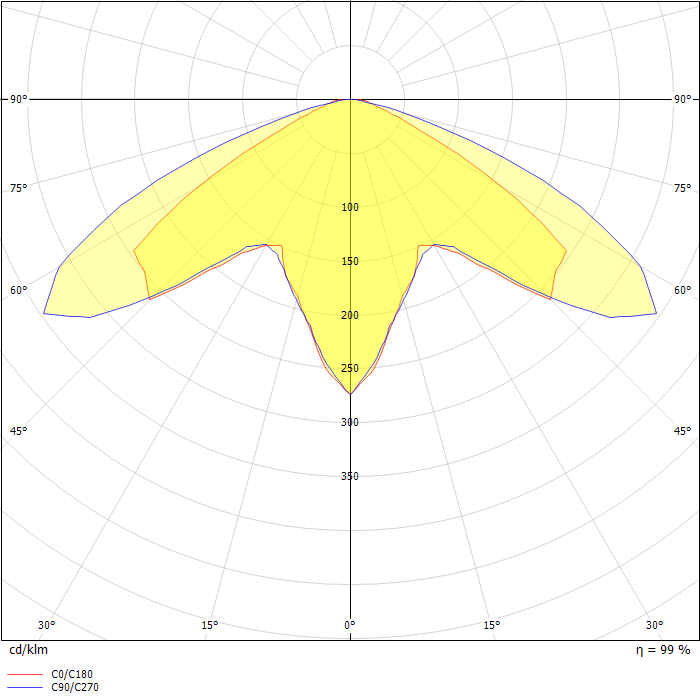

Photometric data

ZIP file
