Installation Surface-mounted, wall, cord and cable with ceiling bracket. Bracket, see accessories. Connection Two cable-entry equipped with insertion holes Ø 22 mm – one in each end cap. Snap-in terminal block 5 x 2.5 mm²; option of through-wiring. Design Luminaire body of PS plastic. Mounting plate in white enamelled steel sheet. Louvre Opal diffuser made of plastic, acrylic (PMMA, IK03) or polycarbonate (PC, IK08) with stainless steel shade catch. The shade has internal, lengthways grooves.
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 19 W | 2741 lm | 144 lm/W | 4000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 600 mm
Width: 126 mm
Height: 106 mm
Adjustability
Fixed
Electric
System power: 19 W
Protection
IP: 67
IK: 08

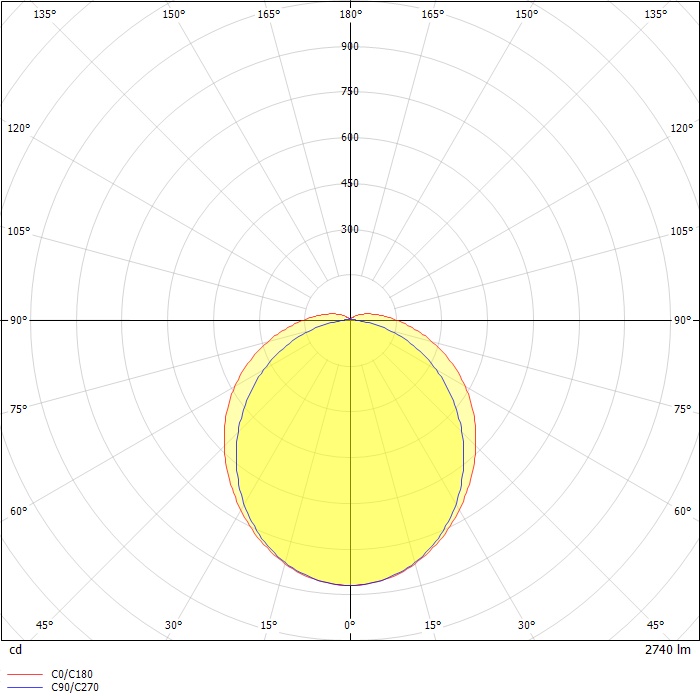

Photometric data
ZIP file
