Product data sheet

LED NEON919/950 CCT flex stripe B13H10 for tile profiles, 24V DC, 6W|6W, IP67, 300cm, 240 LED/m

116266

ISOLED

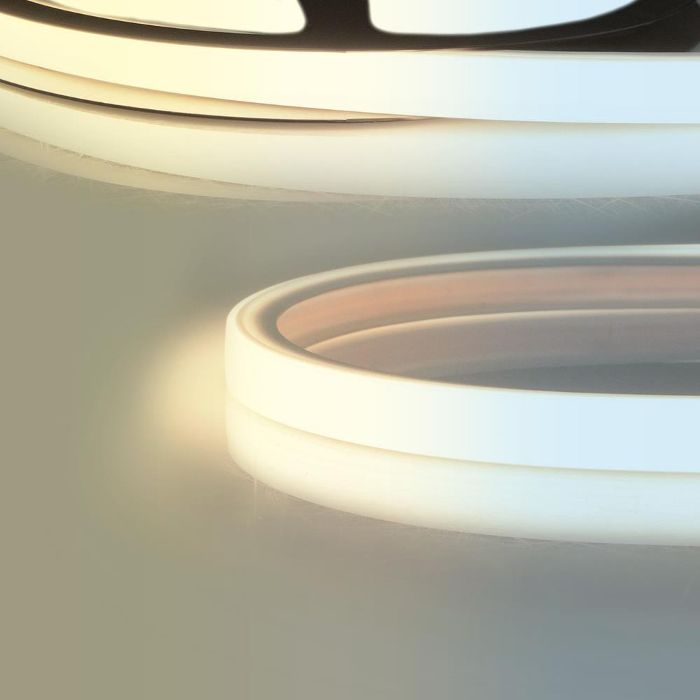

Product image 1: LED NEON919/950 CCT flex stripe B13H10 for tile profiles, 24V DC, 6W|6W, IP67, 300cm, 240 LED/m
Product image 1: LED NEON919/950 CCT flex stripe B13H10 for tile profiles, 24V DC, 6W|6W, IP67, 300cm, 240 LED/m

Product image 1: LED NEON919/950 CCT flex stripe B13H10 for tile profiles, 24V DC, 6W|6W, IP67, 300cm, 240 LED/m



IP
67

LED NEON919/950 CCT flex stripe B13H10 for tile profiles, 24V DC, 6W|6W, IP67, 300cm, 240 LED/m - Professional customizable LED flex stripe | Dimensioned power: 6 W/m | Effective power: 12 W/m | Energy efficiency class: G (EU 2019/2015) | Nominal Voltage: 24 V DC | Material: silicone | Protection class: IP67 | Allowable ambient Temperatures: -20° - 40° C | Beam angle: 120° fixed | Color temperature: 1900K - 5000K | Color rendering index: 90 (Ra 1-8) | Luminous flux: 750 lm/m | PWM dimmable | Suitable for indoor and outdoor use | Useful life: 50000 h (L80|B50) | Guarantee: 3 years | Special features: Separation point: 50mm with 12 SMD each | pitch (light point center-center): 8.34mm | 1 unit (roll) = 3m | max. flex tape length per feed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | without adhesive tape! | silicone potting | SPECIAL FEATURE: 30cm 2-pole sheathed cable on one side, white, connection on the side, open stranded wire without MiniAmp plug | NOTE: 2x1mm end caps applied in width and height, vertically bendable (bending radius min. 60mm) | enclosed accessories: 1 end cap without cable gland, incl. sealant | FABRICATION: ISOLED 116266

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 12 W 750 lm 62 lm/W 1900 K 90
LED NEON919/950 CCT flex stripe B13H10 for tile profiles, 24V DC, 6W|6W, IP67, 300cm, 240 LED/m

LED NEON919/950 CCT flex stripe B13H10 for tile profiles, 24V DC, 6W|6W, IP67, 300cm, 240 LED/m

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1000 mm

Width: 13 mm

Height: 10 mm

Adjustability

Fixed

Design

Material impression: Transparent

Colour of housing: White

Electric

System power: 12 W

Ballast: ECG

Protection

IP: 67

Designation labels: CE

Other operating numbers

Ambient temperature range: -20...40°C

Photometric data

ZIP file

Download file
